01 - Cooktop Parts

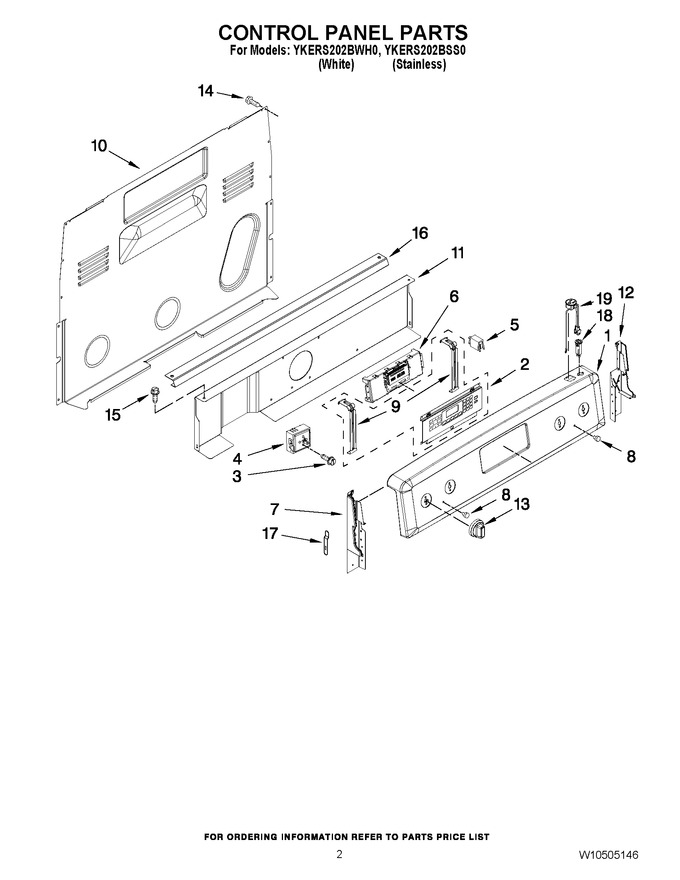

02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347955 | Panel, Backguard (white) |
|
$ 133.42 | |||||
| 1 | W10347957 | Panel, Backguard (stainless) |
|
- | |||||
| 2 | W10324427 | Assembly, Active |
|
$ 319.24 | |||||
| 3 | WP3400882 | Screw, Switch (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10411934 | Switch, Infinte (rf) (Replaces: W10411934) |
|
Immediately | $ 109.39 | ||||
| 4 | WPW10434452 | Switch, Infinte (lf) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4 | 5500-287 | Switch, Infinte (lr & Rr) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WPW10340694 | Control, Mrc (Replaces: W10340694) |
|
$ 714.84 | |||||
| 7 | W11219365 | Endcap Left (white) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 7 | W11219664 | Endcap Left (black) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 8 | WP3196068 | Lens, Red (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W10318546 | Bracket, Control |
|
- | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11219370 | Endcap Right (white) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 12 | W11219665 | Endcap Right (black) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 13 | W10854052 | Knob (stainless) (Replaces: W10324395) |
|
$ 30.14 | |||||
| 13 | W10524672 | Knob (white) (Replaces: W10475384) |
|
$ 18.92 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | W10525121 | Bracket, Console Mounting (Replaces: W10182322) |
|
$ 98.85 | |||||
| 17 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 18 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 18 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 19 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 19 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 |
