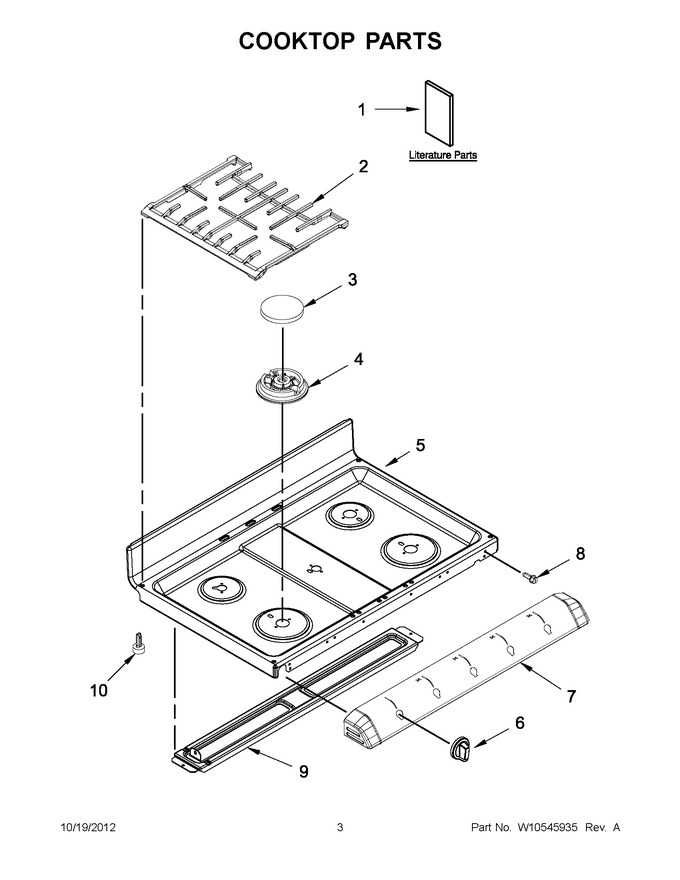

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Internal Oven Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10526071		Instructions, Installation		Appelez-nous	-
1	W10430935		Owners Manual		Appelez-nous	-
1	W10311749		Tech Sheet		Appelez-nous	-
1	9762761		Tips, Safer Cooking (english)		Appelez-nous	-
2	W10338216		Set, Grates (black)				$ 152.18
2	W10338217		Set, Grates (wetstone)				$ 151.20
3	W10324252		Set, Burner Cap (wetstone)				$ 165.57
3	WPW10324251		Set, Burner Cap (black)   (Replaces: W10324251)				$ 182.83
4	WPW10406878		Burner Head, Ultra Rapid (17k) (right Front, Right Rear)   (Replaces: 8286183)				$ 107.48
4	WPW10406243		Burner Head, Auxiliary (6k) (left Rear, Center)   (Replaces: 8286181)			Immediately	$ 39.08
4	WPW10406797		Burner Head, Rapid (12k) (left Front)   (Replaces: 8286182)				$ 92.91
5	W10204721		Cooktop (black)		Appelez-nous	-
5	W10336320		Cooktop (white)   (Replaces: W10204722)				$ 424.37
6	WPW10296917		Knob (black)   (Replaces: W10296917)				$ 20.88
6	WPW10281279		Knob (white)   (Replaces: W10281279)			Immediately	$ 21.34
6	W10294792		Knob (stainless)				$ 19.13
7	W10219243		Panel, Manifold (black)		Appelez-nous	-
7	W10219244		Panel, Manifold (white)		Appelez-nous	-
7	W10219242		Panel, Manifold (stainless)				$ 127.68
8	WP98008545		Screw   (Replaces: 7101P633-60)				$ 18.60
9	W10518258		Bracket, Cooktop Support   (Replaces: W10364218)		Appelez-nous	-
10	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61
