Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard Left (black) Special Order $ 88.42

1 W10319110 Support, Backguard Left (white) Special Order $ 91.38

1 W10319111 Support, Backguard Right (black) Special Order $ 43.80

1 W10319112 Support, Backguard Right (white) Special Order $ 89.32

2 W11233072 Screw   (Replaces: 7101P338-60) In-Stock Immediately $ 14.02

3 W10097270 Console (white) Special Order $ 118.50

3 W10097310 Console (stainless) Special Order $ 116.84

3 W10097280 Console (black) Special Order $ 119.25

4 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 17.71

5 W10365421 Electronic, Control Special Order $ 389.52

6 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 7.19

7 W10297700 Assy., Membrane (incl.bracket) (black) Appelez-nous -
7 W10321780 Assy., Membrane (incl.bracket) (white) Special Order $ 276.68

7 W10297701 Assy., Membrane (incl.bracket) (stainless) Special Order $ 256.53

8 W10278697 Shield, Vent In-Stock Immediately $ 174.60

9 W10296773 Cover, Backguard Special Order $ 185.26

10 W11684874 Insualtion, Wire Cover   (Replaces: W10309232) Special Order $ 33.87


    View Diagram in Separate Window     Print Icon   Print Part List

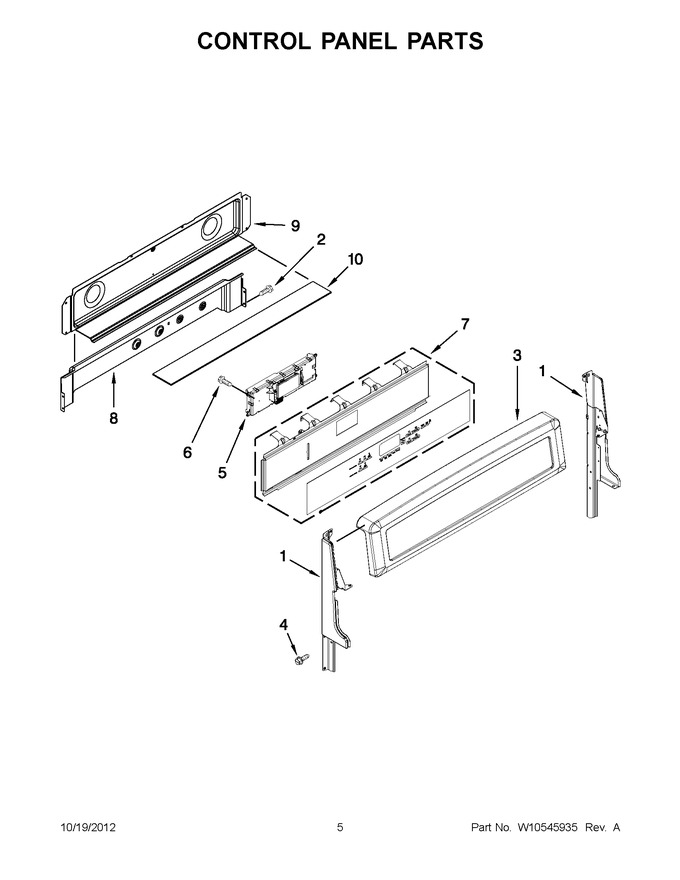

Diagram for MGT8775XB03
