SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

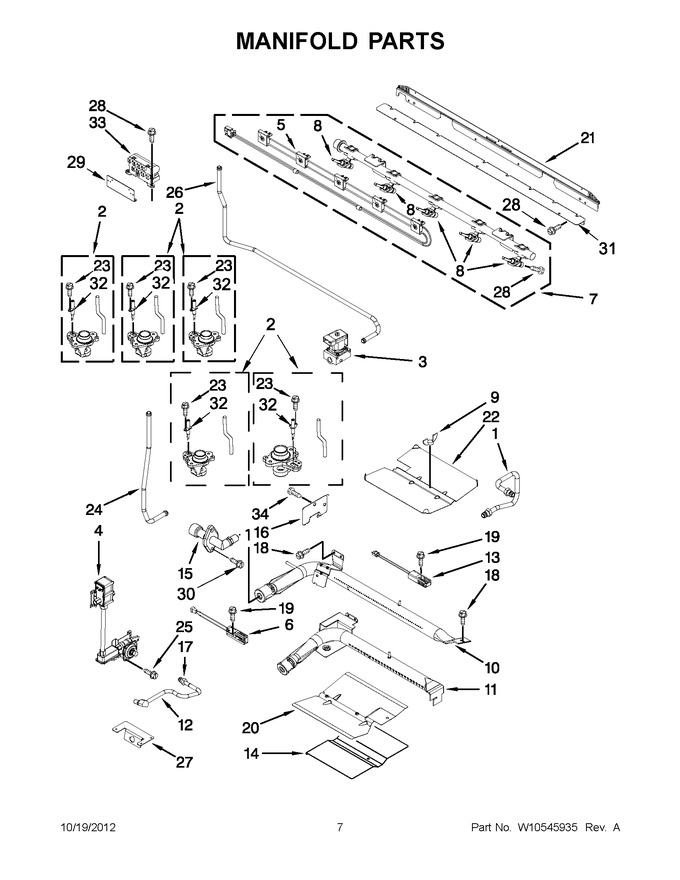

03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Internal Oven Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319002		Tubing, Broil				$ 190.79
2	WPW10296790		Orifice Holder, 9k Right Front   (Replaces: W10296790)				$ 118.21
2	WPW10273135		Holder, Orifice 5k Left Rear   (Replaces: W10273135)				$ 120.21
2	WPW10273133		Holder, Orifice 16k Left Front   (Replaces: W10273133)				$ 122.90
2	WPW10273138		Orifice, Holder 5k Center   (Replaces: W10273138)				$ 115.56
2	WPW10273140		Orifice Holder, 9k Right Rear   (Replaces: W10273140)				$ 122.35
3	9758382		Valve, Shut Off				$ 76.60
4	WPW10518493		Valve/regulator   (Replaces: W10518493)				$ 348.64
5	WPW10204718		Harness, Switch   (Replaces: W10204718)				$ 220.97
6	WPW10324738		Ignitor, Gas   (Replaces: W10324738)			Immediately	$ 329.05
7	W10854406		Assembly, Pipe Manifold   (Replaces: W10204703)				$ 379.95
8	WPW10206287		Valve 5k   (Replaces: W10206287)			Immediately	$ 198.14
8	WPW10206288		Valve 16k   (Replaces: W10206288)			Immediately	$ 111.88
9	7103P030-60		Wing Nut				$ 7.43
10	W11245221		Burner, Broiler   (Replaces: W10315768)				$ 222.29
11	W11174122		Burner, Bake   (Replaces: W10272526)				$ 213.50
12	W10342661		Orifice, Bake Lower				$ 199.64
12	W10342662		Orifice, Bake Upper				$ 210.08
13	W11596211		Ignitor, Bake   (Replaces: 7432P143-60)			Immediately	$ 93.36
14	W10298865		Shield, Bake		Appelez-nous	-
15	W10292293		Fitting, Broiler				$ 104.17
16	4005F421-45		Cover, Ignitor Wire		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 9.39
18	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
19	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
20	W10272528		Baffle, Bake				$ 294.68
21	WPW10276470		Bracket, Manifold Rear Cover   (Replaces: W10343062)				$ 89.33
22	3601F358-45		Baffle, Broil Burner				$ 254.66
23	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
24	W10295050		Tubing (supply Regulator To Shutoff)				$ 192.26
25	W10828565		Screw   (Replaces: 7101P635-60)				$ 7.85
26	W10295055		Tubing (supply Shutoff To Manifold)				$ 207.20
27	W11756017		Bracket, Orifice   (Replaces: W10272520)		Appelez-nous	-
28	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.55
29	W10319059		Bracket, Spark Module		Appelez-nous	-
30	WP3387230		Screw   (Replaces: 7101P502-60)			Immediately	$ 8.54
31	WPW10276466		Bracket, Manifold (bottom)   (Replaces: W10276466)				$ 108.19
32	WPW10407676		Ignitor   (Replaces: W10407676)				$ 54.77
33	74009098		Module, Spark   (Replaces: 7431P053-60)				$ 355.95
34	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11674161		Kit, Lp Conversion   (Replaces: W10328517)				$ 115.66
NI	W10324646		Insulation, Orifice				$ 91.18

    View Diagram in Separate Window       Print Part List
