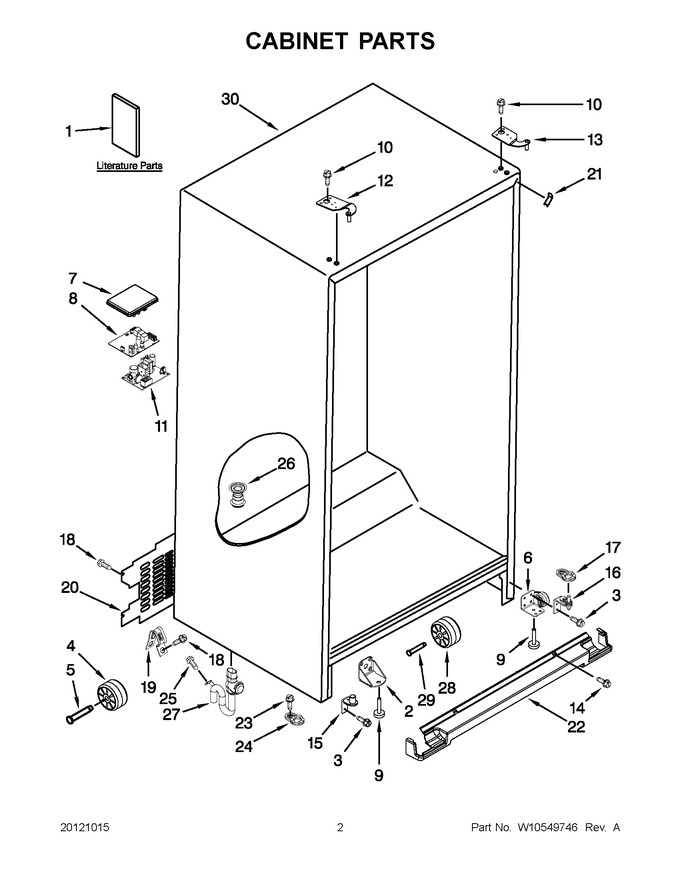

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10298096 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10299712 | Energy Label |
|
- | |||||
| 1 | W10299703 | Use & Care Guide |
|
- | |||||
| 2 | W11266052 | Bracket, Foot (Replaces: W10257186) |
|
$ 66.31 | |||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 8.40 | |||||
| 4 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 6 | W11266052 | Roller Assembly Rc (Replaces: W10155679) |
|
$ 66.31 | |||||
| 7 | W11226688 | Lid, Hv Box (Replaces: 12957702) |
|
$ 85.16 | |||||
| 8 | WPW10356041 | Control, 15w Power Supply (Replaces: W10356041) |
|
$ 309.52 | |||||
| 9 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 10 | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 8.84 | |||||
| 11 | WPW10235418 | Elec. Control (Replaces: W10235418) |
|
$ 369.75 | |||||
| 12 | W11590581 | Hinge Top (fc) (grey) (Replaces: W10249922) |
|
$ 24.93 | |||||
| 13 | W11409290 | Hinge Top (rc) (grey) (Replaces: W10249925) |
|
$ 70.48 | |||||
| 14 | WPW10308489 | Screw (Replaces: W10308489) |
|
Immediately | $ 8.18 | ||||
| 15 | W11293374 | Bottom Hinge (fc) (grey) (Replaces: W10249943) |
|
$ 73.32 | |||||
| 16 | W10500004 | Bottom Hinge (rc) (grey) (Replaces: W10257209) |
|
Immediately | $ 139.15 | ||||
| 17 | W10500004 | Door Closer (rc) (grey) (Replaces: W10257197) |
|
Immediately | $ 139.15 | ||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 19 | 489348 | Clamp, Tube |
|
- | |||||
| 20 | WPW10393909 | Cover, Unit (Replaces: W10393909) |
|
$ 241.53 | |||||
| 21 | WP12587703AP | Filler, Wrapper (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 22 | WPW10713153 | Grille (grey) (Replaces: W10257234) |
|
Immediately | $ 135.52 | ||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 24 | W10876191 | Door Closer (fc) (grey) (Replaces: W10257200) |
|
$ 17.98 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 26 | W10370680 | Drain Fitting |
|
$ 37.83 | |||||
| 27 | W11293072 | Tube, Drain (Replaces: W10379525) |
|
$ 34.60 | |||||
| 28 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 29 | W11208384 | Rivet, Roller (Replaces: 981125) |
|
$ 18.73 | |||||
| 30 | N/P | Cabinet (not A Serviceable Part) |
|
- |
