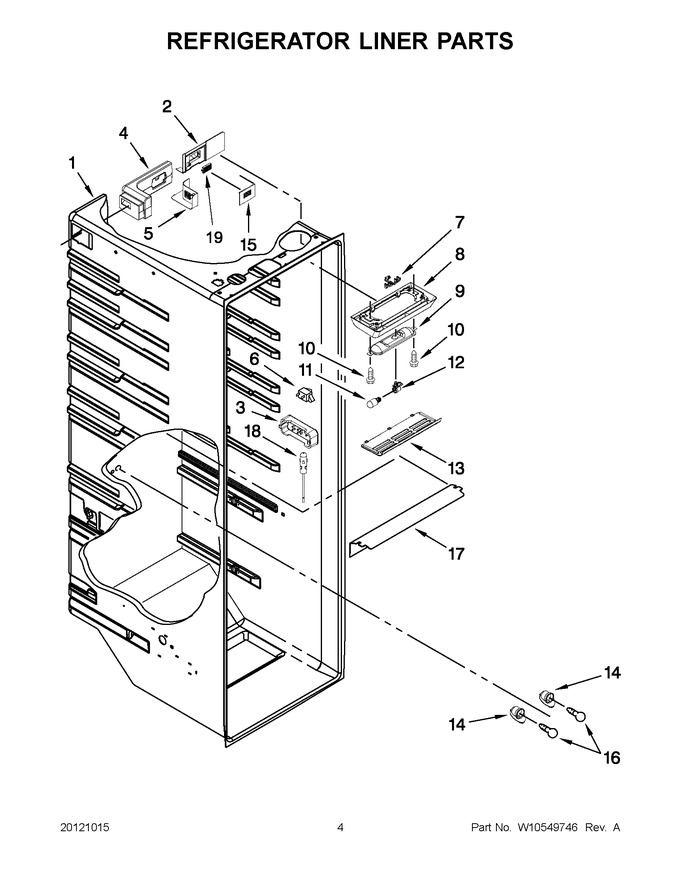

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10300455		Support, Air Filter		Appelez-nous	-
3	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
4	W11162594		Air Diffuser Assembly   (Replaces: W10281161)		Appelez-nous	-
5	WPW10260409		Air Diffuser Cover   (Replaces: W10260409)				$ 85.34
6	W11384469		Switch, Light   (Replaces: C3680314)			Immediately	$ 39.09
7	W10279406		Wire Assembly, Top Light		Appelez-nous	-
8	W10280178		Trim, Light		Appelez-nous	-
9	2223680		Shield, Heat				$ 93.52
10	WP3400906		Screw   (Replaces: W10141632)				$ 9.05
11	W11618980		Light Bulb   (Replaces: W10173035)				$ 22.42
12	W11661565		Socket, Light   (Replaces: W10130033)			Immediately	$ 35.82
13	W10280420		Lens, Top Light				$ 107.14
14	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.87
15	W10251520		Air Filter Cover		Appelez-nous	-
16	WP67002552		Bulb, Light   (Replaces: 851682)			Immediately	$ 12.34
17	WPW10269099		Lens, Light   (Replaces: W10269099)				$ 128.01
18	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 33.60
19	W10311524		Filter, Air   (Replaces: W10315189)			Immediately	$ 14.34

    View Diagram in Separate Window       Print Part List
