SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts

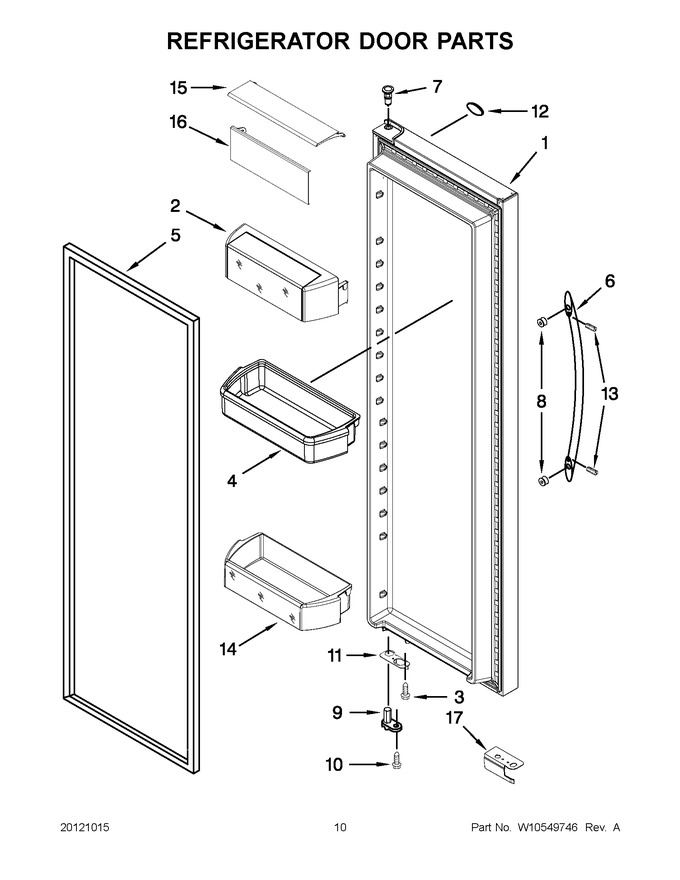

05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Unit Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10352230		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
2	WPW10324760		Door Compartment Assembly   (Replaces: W10316889)				$ 85.60
3	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
4	W10286561		Door Bin, Shallow		Appelez-nous	-
5	W10355582		Door Gasket, Magnetic (grey)   (Replaces: W10249916)				$ 341.26
6	WPW10670421		Handle (stainless)   (Replaces: W10274730)				$ 254.15
7	WP2182181		Thimble-top   (Replaces: 2200086)				$ 8.15
8	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
9	WPW10257203		Door Closer, Upper Cam(grey)   (Replaces: W10257203)				$ 12.96
10	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
11	W11037957		Bracket, Door Stop (black)   (Replaces: W10367462)				$ 80.24
12	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 79.55
13	W11366418		Screw, Silver   (Replaces: W10010140)			Immediately	$ 15.79
14	W10309878		Door Bin				$ 86.59
15	WPW10316883		Lid, Utility Bin   (Replaces: W10316883)				$ 67.67
16	WPW10316885		Window, Door Compartment   (Replaces: W10316885)				$ 75.42
17	W11661847		Cover, Door Stop (grey)   (Replaces: W10257218)			Immediately	$ 31.71

    View Diagram in Separate Window       Print Part List
