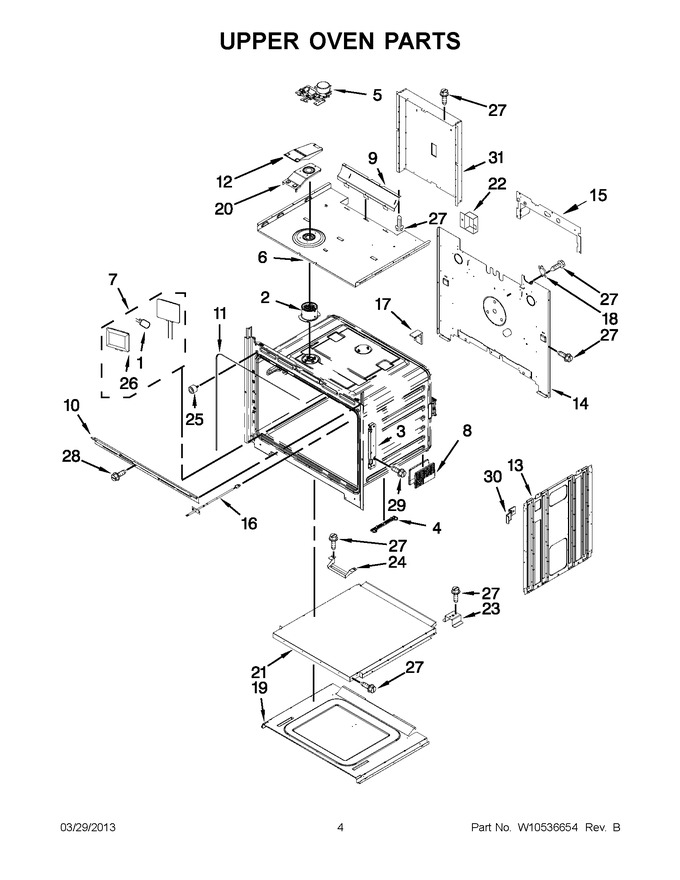

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 92.48 | ||||
| 2 | W11240525 | Tube, Vent (Replaces: W10282946) |
|
$ 25.54 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10282975) |
|
Immediately | $ 57.49 | ||||
| 4 | WPW10318220 | Spacer, Base (Replaces: W10318220) |
|
$ 26.76 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 306.46 | ||||
| 6 | W10282980 | Top, Chassis |
|
$ 123.95 | |||||
| 7 | WPW10519866 | Assembly, Oven Light (Replaces: W10519866) |
|
$ 96.33 | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10318219) |
|
$ 33.51 | |||||
| 9 | W10351258 | Bracket, Blower Deflector |
|
- | |||||
| 10 | W10283036 | Vent, Top 30`` |
|
$ 63.87 | |||||
| 11 | W11623080 | Gasket (Replaces: W10282960) |
|
Immediately | $ 72.35 | ||||
| 12 | W10616810 | Exhaust, Vent Cover (Replaces: W10282985) |
|
$ 69.95 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10282990 | Back, Chassis |
|
- | |||||
| 15 | W10509165 | Bracket, U-shape |
|
- | |||||
| 16 | WP74008369 | Probe, Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 132.94 | ||||
| 17 | WPW10323551 | Bumper, Rail (Replaces: W10323551) |
|
$ 8.41 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W11238787 | Base, Chassis (Replaces: W10282900) |
|
$ 349.65 | |||||
| 20 | W10616809 | Base, Exhaust Vent (Replaces: W10282984) |
|
$ 32.24 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 220.05 | |||||
| 22 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Chassis, Bottom Duct Spacer |
|
$ 58.73 | |||||
| 25 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 26 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 96.33 | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 28 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 29 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| 30 | W10347649 | Spacers, Front |
|
$ 15.02 | |||||
| 31 | W10318196 | Duct, Chassis Back Upper |
|
$ 218.89 | |||||
| NI | W11684789 | Insulation, Cavity (Replaces: W10282944) |
|
$ 124.04 | |||||
| NI | W11688731 | Insulation, Wrap (Replaces: W10520715) |
|
$ 124.87 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
