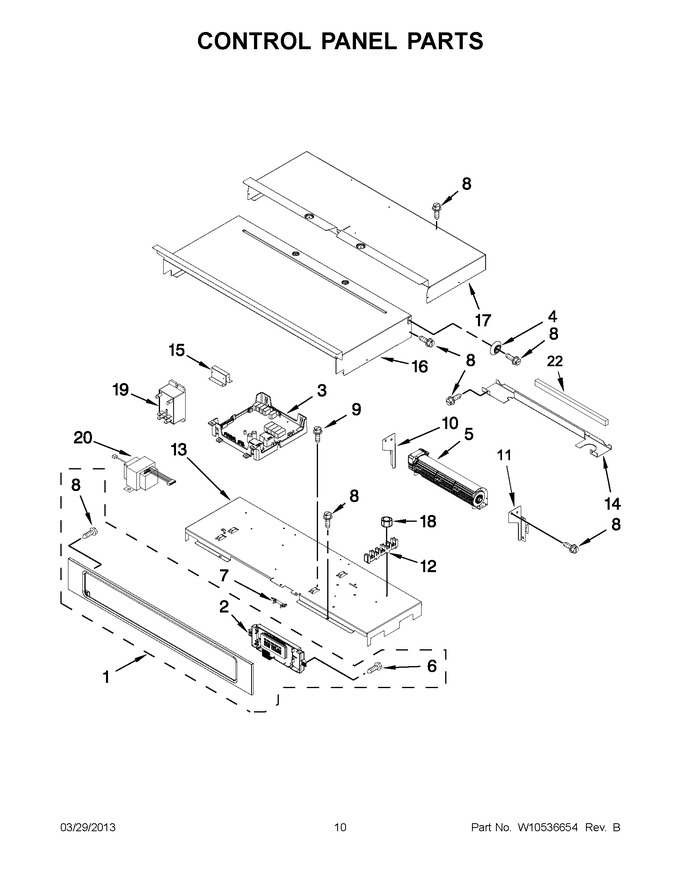

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10359760		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
2	W10317348		Board, Display		Appelez-nous	-
3	W10317345		Board, Goc				$ 372.16
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	WPW10260254		Blower   (Replaces: W10260254)			Immediately	$ 178.03
6	WP98008545		Black   (Replaces: 7101P633-60)				$ 18.60
7	WPW10545291		Fuse, Thermal   (Replaces: W10436435)			Immediately	$ 35.50
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10351257		Bracket, Blower Left		Appelez-nous	-
10	W10283078		Bracket, Blower Right		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10347650		Tray, Electronic				$ 126.08
14	W10509164		Chassis, Divider Back (upper Model Only)   (Replaces: W10504027)		Appelez-nous	-
15	W10347585		Bracket, Relay				$ 16.65
16	W10318192		Chassis, Cover Top Front 30``				$ 138.81
17	W10904156		Chassis, Cover Top Back 30``   (Replaces: W10318194)		Appelez-nous	-
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 7.55
19	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 201.17
20	W10354052		Transformer, Control				$ 122.98
21	W10351295		Bumper (lower Model Only)				$ 22.12
