01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts

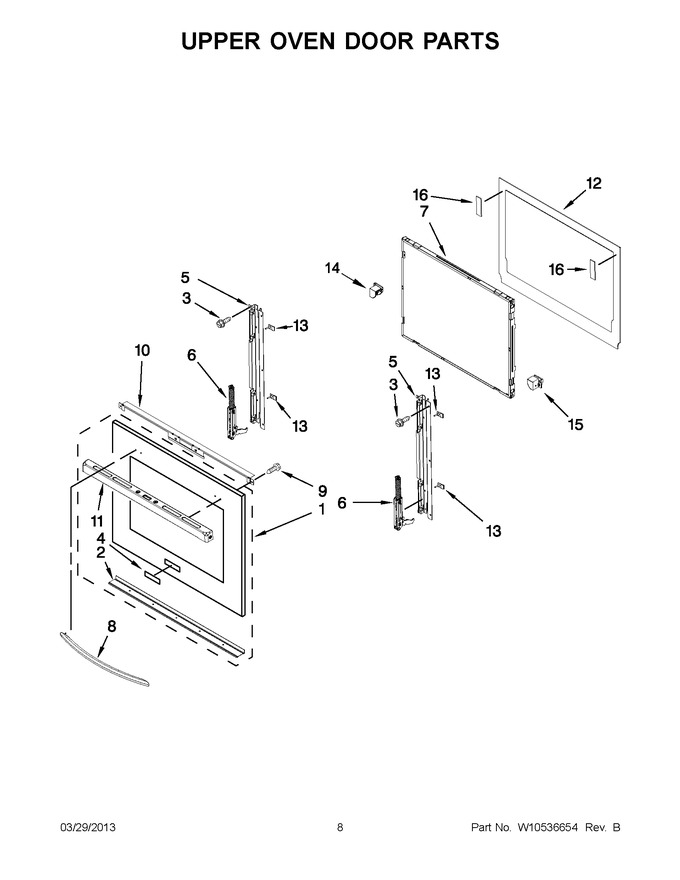

04 - Upper Oven Door Parts


05 - Control Panel Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10360523		Assembly, Window Pack (stainless)		Appelez-nous	-
2	W10479068		Bracket, Lower Door   (Replaces: W10502555)				$ 20.01
3	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 7.55
4	WPW10320959		Badge Zinc   (Replaces: W10320959)				$ 102.43
5	W10284278		Rail, Door Side (left)		Appelez-nous	-
5	W10284279		Rail, Door Side (right)		Appelez-nous	-
6	W10825778		Hinge, Door   (Replaces: W10419877)			Immediately	$ 112.85
7	WPW10347598		Assembly, Inner Glass   (Replaces: W10347598)			Immediately	$ 311.95
8	W10246102A		Assembly, Door Handle (stainless)   (Replaces: W10246102)		Appelez-nous	-
9	WPW10276043		Screw   (Replaces: W10276043)				$ 7.30
10	W10502539		Bracket, Upper, Glass		Appelez-nous	-
11	WPW10416257		Vent, Door Top   (Replaces: W10416257)				$ 277.37
12	WPW10335920		Liner, Door   (Replaces: W10335920)				$ 415.93
13	WPW10323551		Bumper, Rail   (Replaces: W10323551)				$ 8.41
14	W10284284		Bracket, Door Side Left		Appelez-nous	-
15	WPW10581826		Bracket, Door Side Right   (Replaces: W10284283)				$ 66.63
16	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 12.44

    View Diagram in Separate Window       Print Part List
