Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 W10550195 Louver Appelez-nous -
3 WPW10515058 Assembly, Led Light (flat Lens)   (Replaces: W10515058) In-Stock Immediately $ 37.12

4 WPW10515057 Assembly, Led Light (tapered Lens)   (Replaces: W10515057) In-Stock Immediately $ 47.29

5 WPW10276792 Tubing, Water Reservoir   (Replaces: W10276792) Special Order $ 144.45

6 488280 Screw Appelez-nous -
7 W10899382 Assembly, Air Diffuser   (Replaces: W10793669) Special Order $ 201.44

8 W10128735 Cover, Air Diffuser Appelez-nous -
9 W10759522 Screw   (Replaces: 486298) Special Order $ 8.24

10 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 39.09


    View Diagram in Separate Window     Print Icon   Print Part List

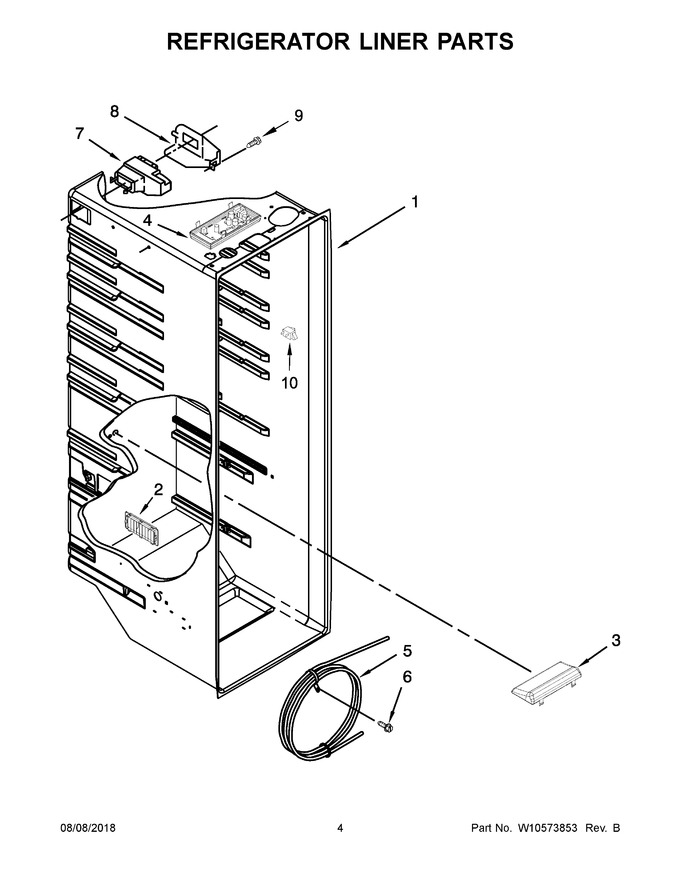

Diagram for WRS342FIAM00
