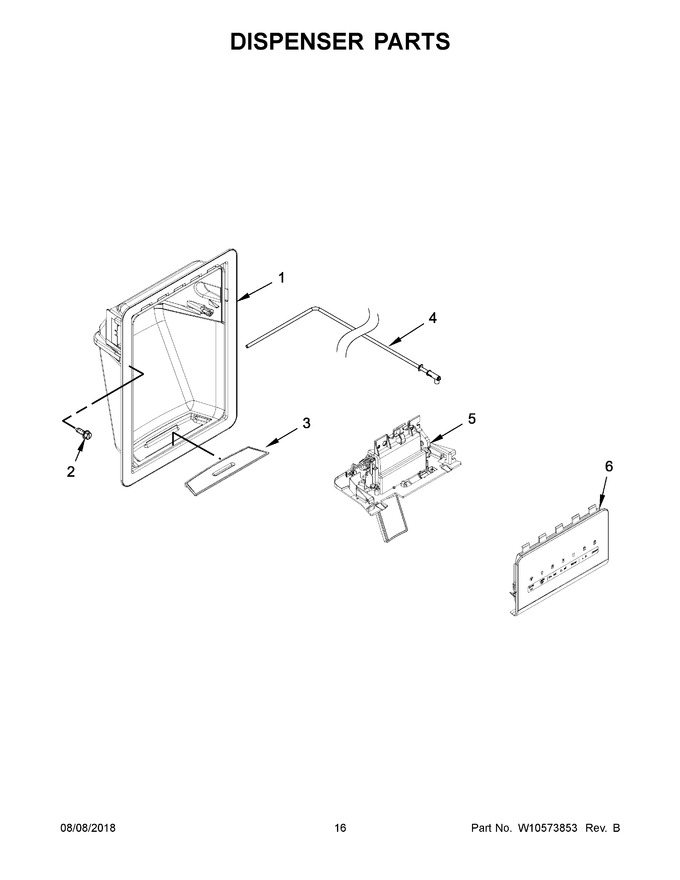

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 3 | WPW10397392 | Grille, Overflow (white) (Replaces: W10397392) |
|
$ 51.23 | |||||
| 4 | WPW10397435 | Assembly, Water Fitting (Replaces: W10397435) |
|
$ 132.24 | |||||
| 5 | W10616146 | Assembly, Separator (white) (Replaces: W10441789) |
|
$ 219.38 | |||||
| 6 | W10877893 | Ui Assembly Control (black) |
|
- | |||||
| 3A | WPW10397394 | Grille, Overflow (black) (Replaces: W10397394) |
|
$ 50.86 | |||||
| 3B | WPW10397992 | Grille, Overflow (biscuit) (Replaces: W10397992) |
|
$ 49.51 | |||||
| 3C | WPW10397395 | Grille, Overflow (grey) (Replaces: W10397395) |
|
$ 51.23 | |||||
| 5A | W10441790 | Assembly, Separator (black) |
|
- | |||||
| 5B | W10714971 | Assembly, Separator (biscuit) (Replaces: W10441792) |
|
$ 210.53 | |||||
| 5C | W10616148 | Assembly, Separator (grey) (Replaces: W10441791) |
|
$ 249.84 |
