Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10622752 Ice Bin Appelez-nous -
2 W10622753 Ice Container (complete) Appelez-nous -
3 WPW10254073 Washer   (Replaces: W10254073) In-Stock Immediately $ 10.61

4 WP2198628 Seal   (Replaces: 2198628) In-Stock Immediately $ 12.57

5 WP8281163 Screw (stainless)   (Replaces: 8281163) In-Stock Immediately $ 10.70

6 W10628260 Plate, Mounting Appelez-nous -
7 W11430832 Motor, Dispenser   (Replaces: W11117909) Special Order $ 346.68

8 W10807231 Drive Shaft Appelez-nous -
9 W10281266 Wire Assembly Special Order $ 19.27

10 2322488 Enclosure, Motor Special Order $ 88.63


    View Diagram in Separate Window     Print Icon   Print Part List

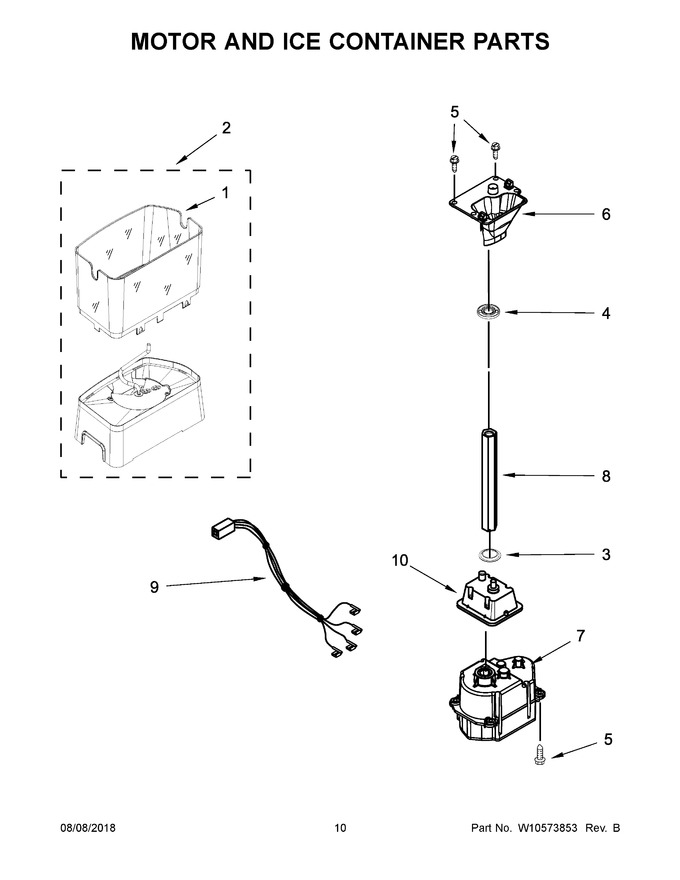

Diagram for WRS342FIAM00
