SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Shelf Parts


06 - Refrigerator Door Parts


07 - Freezer Door And Basket Parts


08 - Top Grille & Unit Cover


09 - Upper Unit Parts


10 - Lower Unit & Tube Parts


11 - Ice Maker Parts


12 - Optional Parts (not Included)

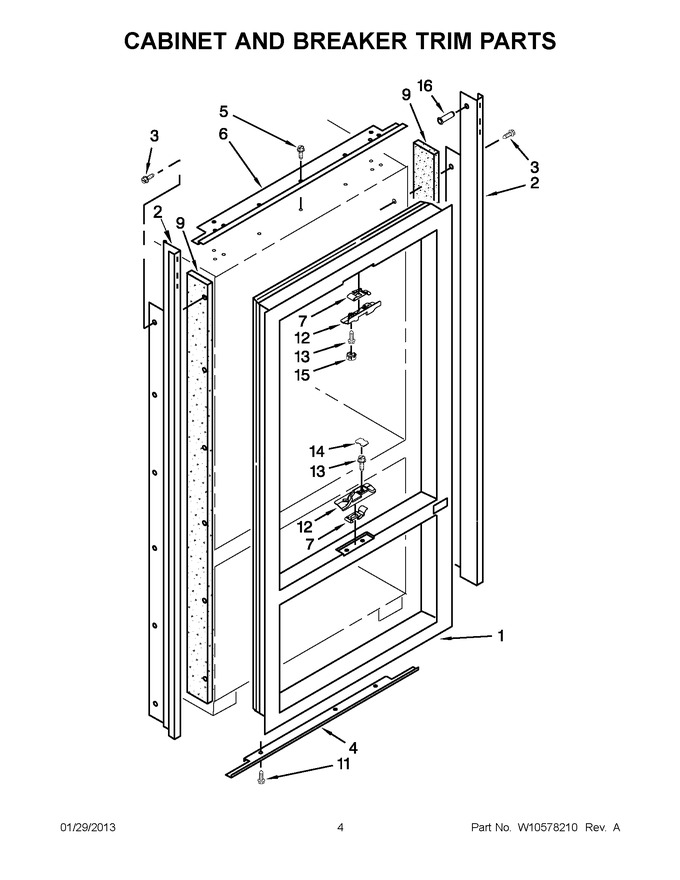

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Breaker, Trim (not Serviced)		Appelez-nous	-
2	W10344547		Assembly, Trim (left Hand)				$ 122.36
2	W10344544		Assembly, Trim (right Hand)				$ 118.24
3	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
4	W10188505		Cabinet, Trim (bottom)				$ 124.72
5	W11624204		Screw   (Replaces: 486194)				$ 14.72
6	W10138451		Cabinet, Trim Top				$ 221.85
7	2316858		Cam, Mullion (bottom)		Appelez-nous	-
7	2316857		Cam, Mullion (top)				$ 15.67
9	2005925		Trim, Side Seal				$ 83.72
11	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
12	2309231		Contact, Mullion (bottom)				$ 54.31
12	2309230		Contact, Mullion (top)				$ 16.17
13	W11624204		Screw   (Replaces: 486194)				$ 14.72
14	2316899		Cover, Screw (square)		Appelez-nous	-
15	2317078		Cover, Screw (round)		Appelez-nous	-
16	WPW10121451		Insert, Blind Threaded   (Replaces: W10121451)			Immediately	$ 8.03

    View Diagram in Separate Window       Print Part List
