01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Shelf Parts


06 - Refrigerator Door Parts


07 - Freezer Door And Basket Parts


08 - Top Grille & Unit Cover


09 - Upper Unit Parts


10 - Lower Unit & Tube Parts


11 - Ice Maker Parts


12 - Optional Parts (not Included)

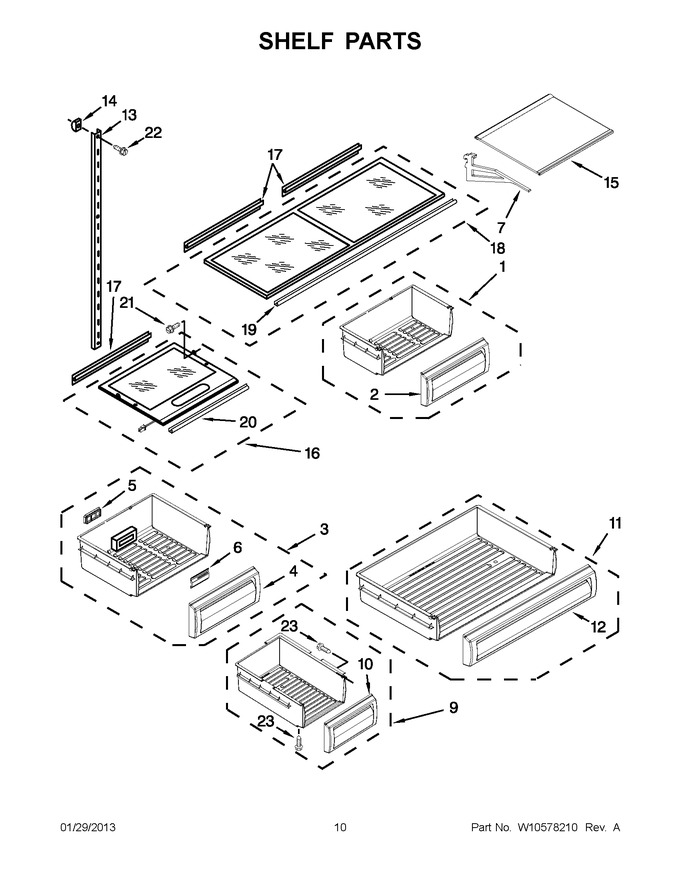

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10407630		Crisper Pan Assembly (includes No. 2) (right Hand)		Appelez-nous	-
1	W10407631		Crisper Pan Assembly (includes No. 2) (left Hand)				$ 87.13
2	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 119.90
3	W10407635		Deli Pan Assembly (incl. No.4, 5 & 6) (left Hand)				$ 80.70
3	W10407633		Deli Pan Assembly (incl. No.4, 5 & 6) (right Hand)				$ 95.83
4	WP2256365		Assembly, Meat Pan Front   (Replaces: 2256365)				$ 156.16
5	2307810		Duct Deli Pan		Appelez-nous	-
6	2317939		Air Deflector		Appelez-nous	-
7	W10187549		Sidearm-shelf				$ 269.21
9	2306174		Ice Pan Assembly				$ 147.41
10	2306175		Front, Ice Pan				$ 86.36
11	2327511		Freezer Pan Assembly (inlcudes Item 12)		Appelez-nous	-
12	WP2256367		Assembly, Meat Pan Front   (Replaces: 2256367)				$ 164.48
13	W10213472		Ladder, Shelf		Appelez-nous	-
14	W10246602		Support, Ladder		Appelez-nous	-
15	WPW10198701		Shelf   (Replaces: W10198701)				$ 219.65
16	W10203644		Cover, Deli Bin (right Hand)		Appelez-nous	-
16	W10194724		Cover, Deli Bin (left Hand)		Appelez-nous	-
17	2309400		Gasket, Rear		Appelez-nous	-
18	W11430640		Cover, Crisper   (Replaces: W10183754)				$ 308.44
19	2309396		Gasket, Front (crisper Cover)		Appelez-nous	-
20	2309395		Gasket, Front (deli Cover)		Appelez-nous	-
21	W10825422		Screw   (Replaces: 8281251)				$ 10.22
22	2006475		Screw		Appelez-nous	-
23	WP488787		Screw   (Replaces: 488886)				$ 10.13
