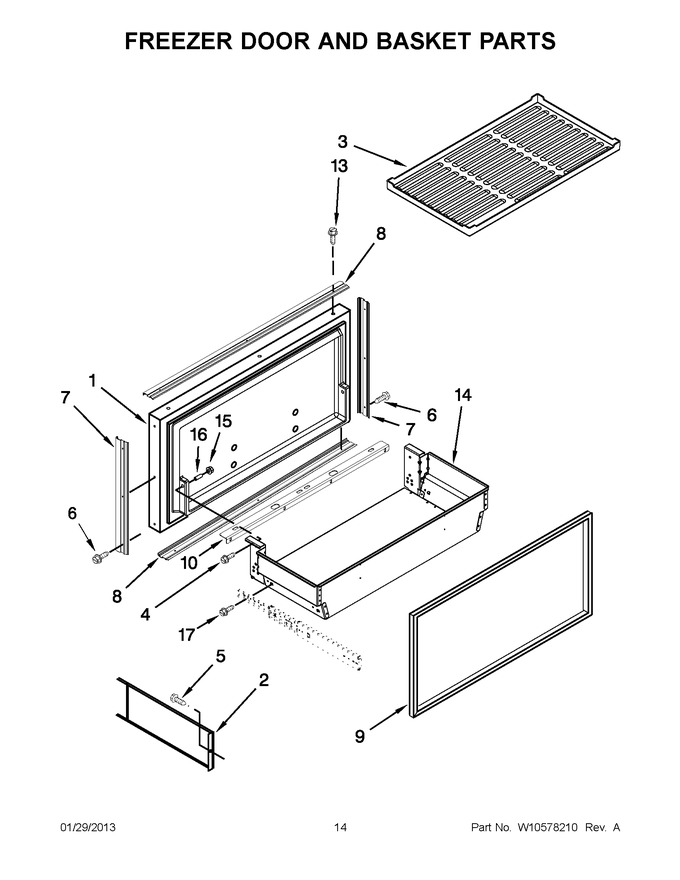

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10259063		Freezer Door		Appelez-nous	-
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Basket   (Replaces: W10183770)				$ 255.29
4	W10135775		Screw				$ 13.44
5	WP488234		Screw   (Replaces: W10135792)				$ 6.37
6	W10109030		Screw				$ 13.82
7	W10203455		Trim-door, Side				$ 89.41
8	W10203453		Trim-door, Top & Bottom				$ 117.61
9	WPW10192907		Door Gasket, Magnetic   (Replaces: W10192907)			Immediately	$ 326.78
10	WPW10203457		Bracket, Mounting Panel   (Replaces: W10203457)				$ 63.84
13	W10825422		Screw   (Replaces: 8281251)				$ 10.22
14	W10258183		Basket Assembly, Freezer		Appelez-nous	-
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 10.24
16	W10001190		Washer				$ 7.92
17	W10135775		Screw				$ 13.44

    View Diagram in Separate Window       Print Part List
