SELECT A DIAGRAM

01 - Cover Sheet

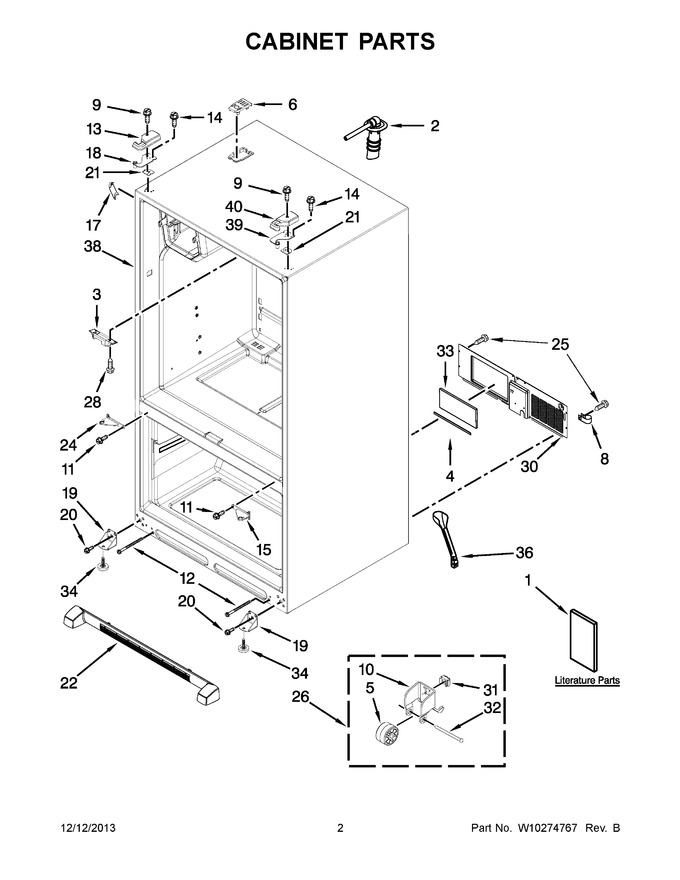

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Shelf Parts


05 - Motor And Ice Container Parts


06 - Icemaker Parts


07 - Freezer Liner Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10141352		Tech Sheet		Appelez-nous	-
1	W10215638		Guide, Energy		Appelez-nous	-
1	W10175442		Use And Care Guide		Appelez-nous	-
2	W11415785		Tube, Water   (Replaces: 12961401)			Immediately	$ 62.39
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 12.41
5	WP10450603		Roller   (Replaces: 10450603V)				$ 7.88
6	12981401B		Cover, Fill Tube (black)				$ 12.62
6	12981401W		Cover, Fill Tube (white)				$ 12.62
8	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	12456801V		Bracket-roller				$ 50.57
11	W11573362		Screw   (Replaces: 12992201)				$ 14.02
12	71003131		Bolt, Roller Adjusting   (Replaces: 12606103)			Immediately	$ 6.74
13	12962301Q		Cover, Top Hinge (left) (biscuit/bisque)		Appelez-nous	-
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: 12962301W)			Immediately	$ 22.42
13	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 12962301B)			Immediately	$ 22.22
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.88
15	W10918164		Hinge, Center Right (black)   (Replaces: 13000008ED)				$ 86.64
15	13000002WD		Hinge, Center (right) (white)				$ 153.32
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 21.09
17	12587703W		Cover, Corner (white)				$ 21.81
17	12587703C		Cover, Corner (biscuit/bisque)		Appelez-nous	-
18	W11592375		Hinge, Top Left Hand   (Replaces: 12963204ED)				$ 29.09
19	12906303WD		Foot, Cabinet				$ 84.36
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.69
21	12999501		Shim, Top Hinge (left Hand)				$ 94.79
21	12999502		Shim, Top Hinge (right Hand)				$ 95.81
22	WPW10534153		Grille, Toe (black)   (Replaces: 12880103B)				$ 147.21
22	12880103Q		Grille, Toe (bisque)		Appelez-nous	-
22	WPW10534154		Grille, Toe (white)   (Replaces: 12880103W)				$ 146.34
24	W10918113		Hinge, Center (left) (white)   (Replaces: 13000001WD)				$ 93.26
24	W10918164		Hinge, Center Left (black)   (Replaces: 13000007ED)				$ 86.64
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
26	12580304		Assembly, Roller Bracket				$ 5.84
28	W10854958		Screw   (Replaces: 12990302)				$ 7.43
30	WPW10270394		Cover, Unit   (Replaces: W10211858)				$ 198.79
31	M0286708		Nut, Speed				$ 45.57
32	M1205302		Pin, Roller				$ 5.85
33	12820505		Insulation				$ 71.70
34	10354002		Brake, Foot			Immediately	$ 7.38
36	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
38	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
39	W11592374		Hinge, Top Right Hand   (Replaces: 12963205ED)			Immediately	$ 29.02
40	67005958		Cover, Top Hinge (right) (white)   (Replaces: 12962302W)				$ 20.54
40	12962302Q		Cover, Top Hinge (right) (biscuit/bisque)		Appelez-nous	-
40	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 12962302B)				$ 21.47

    View Diagram in Separate Window       Print Part List
