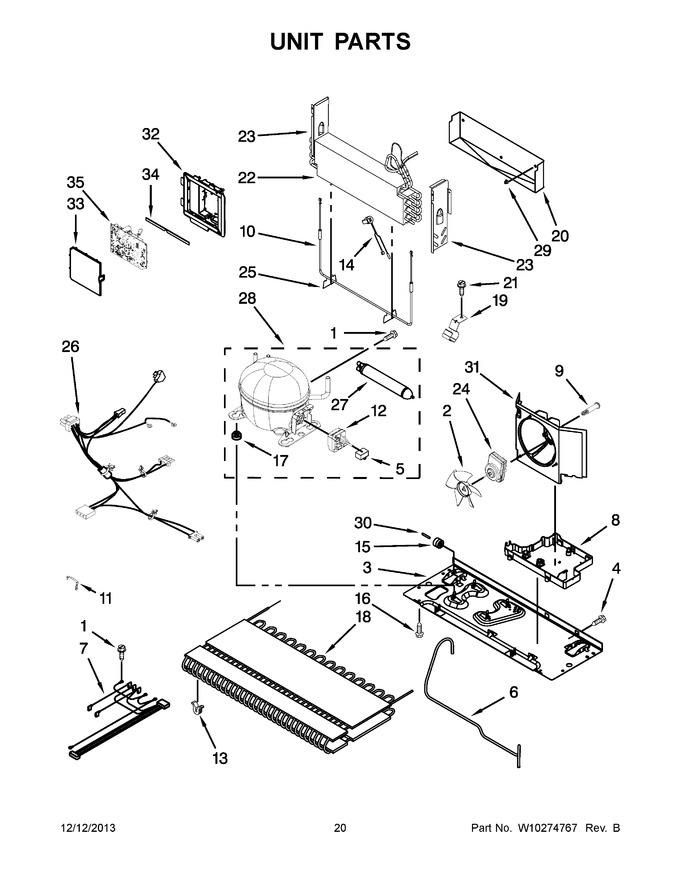

10 - Dispenser Front Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10210985)				$ 110.55
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
5	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
6	WPW10217747		Tube, Discharge   (Replaces: W10217747)				$ 144.46
7	W10850438		Harness, Evaporator And Heater Wire (includes Thermostat)   (Replaces: W10257095)			Immediately	$ 306.39
8	WPW10655368		Pan, Drain   (Replaces: W10215085)			Immediately	$ 99.03
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 13.28
10	WP12729123		Heater, Defrost   (Replaces: 12729123)				$ 191.44
11	W10204187		Strap, Bale		Appelez-nous	-
12	WPW10197428		Device, Combination Start (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 89.21
13	WPW10137529		Grommet, Condenser   (Replaces: W10137529)				$ 8.76
14	WP67006387		Thermostat   (Replaces: 12639311SP)			Immediately	$ 123.56
15	12477102		Roller			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
17	WPW10169124		Grommet, Compressor   (Replaces: 10835903SP)				$ 7.55
18	WPW10346415		Condenser   (Replaces: W10135026)				$ 352.15
19	10547003		Clip, Drier		Appelez-nous	-
20	W11547653		Tray, Drip   (Replaces: 12225403WD)				$ 57.02
21	WP33001882		Screw   (Replaces: 12990701)				$ 83.71
22	12002730		Evaporator   (Replaces: 12959803)				$ 363.64
23	12963002SP		Dam, Return (left Hand)		Appelez-nous	-
23	12963102SP		Dam, Return (right Hand)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 12825101)			Immediately	$ 143.68
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	W11666013		Harness, Unit (includes Power Cord)   (Replaces: W10234027)			Immediately	$ 107.23
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10160407		Compressor   (Replaces: W10134623)				$ 629.92
29	10623002		Clip, Evaporator				$ 12.11
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
31	W11556315		Shroud, Condenser Fan   (Replaces: W10189184)				$ 83.64
32	WP67006390		Box, Control   (Replaces: 12957601)				$ 214.59
33	67006428		Lid, Control Box   (Replaces: 12957701)				$ 62.55
34	12957801		Gasket, Control Box		Appelez-nous	-
35	WPW10310240		Board, Control   (Replaces: W10213583)			Immediately	$ 391.86
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 5.00 Oz. (r-134a)		Appelez-nous	-
