SELECT A DIAGRAM
New Model Search:

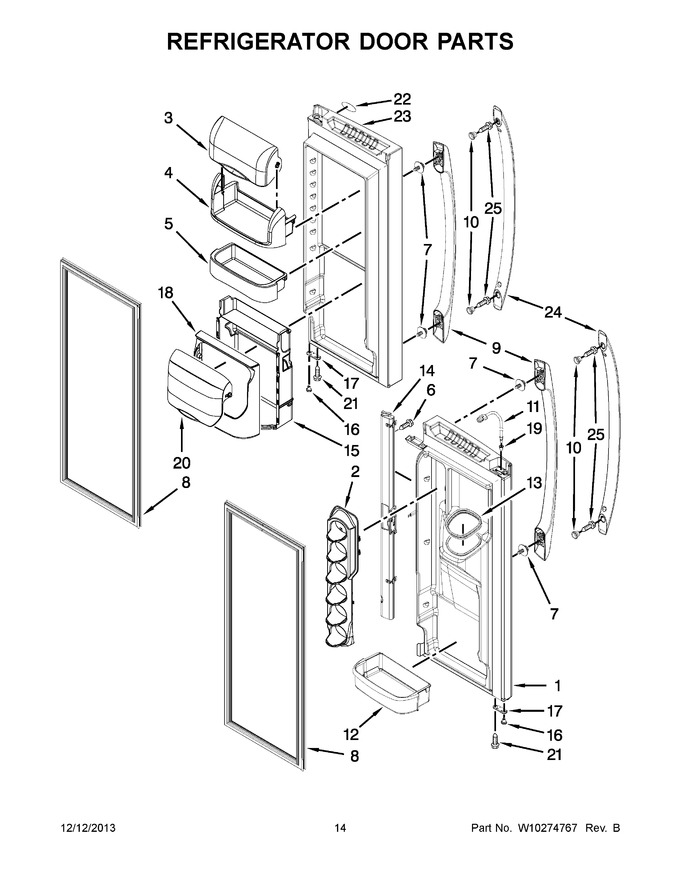

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12978037BQ | Door, Left (black) |
|
- | |||||
| 1 | 12978022SQ | Door, Left (stainless) |
|
- | |||||
| 1 | 12978037QQ | Door, Left (bisque) |
|
- | |||||
| 1 | 12978037WQ | Door, Left (white) |
|
- | |||||
| 2 | 12922301 | Dispenser, Can |
|
- | |||||
| 3 | WP12744905 | Assembly, Dairy (Replaces: 12744905) |
|
$ 108.56 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WP67006313 | Bucket, Shelf (Replaces: 12945801SP) |
|
Immediately | $ 80.59 | ||||
| 6 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.43 | |||||
| 7 | WP12992902 | Screw (Replaces: 12992902) |
|
$ 11.07 | |||||
| 8 | W11396037 | Gasket, Door (white) (Replaces: W10163896) |
|
$ 297.77 | |||||
| 8 | W11378944 | Gasket, Door (black) (Replaces: W10163898) |
|
Immediately | $ 187.59 | ||||
| 9 | W10179166 | Handle, Door (right Side) (black) |
|
- | |||||
| 9 | WPW10179168 | Handle, Door (right Side) (white) (Replaces: W10179168) |
|
$ 163.25 | |||||
| 9 | W10179170 | Handle, Door (left Side) (bisque) |
|
- | |||||
| 9 | W10179169 | Handle, Door (left Side) (black) |
|
$ 72.25 | |||||
| 9 | W10179171 | Handle, Door (left Side) (white) |
|
$ 77.64 | |||||
| 9 | W10179167 | Handle, Door (right Side) (bisque) |
|
- | |||||
| 10 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 11.96 | ||||
| 11 | 12962106 | Tube, Water |
|
$ 126.75 | |||||
| 12 | 12918403 | Bin, Shelf (large) |
|
- | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 12665101SP) |
|
Immediately | $ 31.20 | ||||
| 14 | WP12722813W | Mullion, Door (bisque) (Replaces: 12722813Q) |
|
$ 325.02 | |||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: 12722813W) |
|
$ 325.02 | |||||
| 14 | WPW10151713 | Mullion, Door (black) (Replaces: 12722813B) |
|
$ 325.79 | |||||
| 15 | W11266639 | Frame, Chiller (rear) (Replaces: 12945601SP) |
|
$ 256.79 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.05 | ||||
| 17 | 12968202Q | Stop, Door (biscuit/bisque) |
|
- | |||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 65.99 | |||||
| 18 | W11266639 | Frame, Chiller (front) (Replaces: 12945501SP) |
|
$ 256.79 | |||||
| 19 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 20 | WP67006312 | Door, Chiller (Replaces: 12945701SP) |
|
Immediately | $ 82.18 | ||||
| 21 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 22 | Y12528501 | Nameplate (stainless) (Replaces: 12528501) |
|
Immediately | $ 59.75 | ||||
| 23 | 12978021SQ | Door, Right (stainless) |
|
- | |||||
| 23 | 12978038QQ | Door, Right (bisque) |
|
- | |||||
| 23 | 12978038BQ | Door, Right (black) |
|
- | |||||
| 23 | 12978038WQ | Door, Right (white) |
|
- | |||||
| 24 | W10197305 | Handle (stainless) |
|
- | |||||
| 25 | WP3387230 | Screw (Replaces: 12692001) |
|
Immediately | $ 8.54 |
