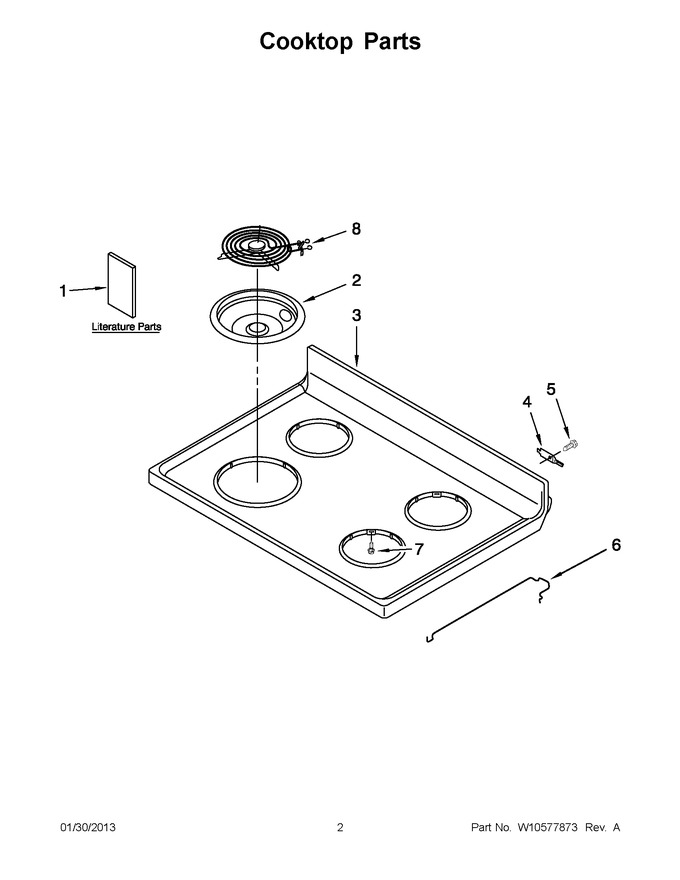

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | W10394385 | User Instructions (english/french) |
|
- | |||||
| 1 | W10361708 | Sheet, Tech (english) |
|
- | |||||
| 1 | W10361709 | Sheet, Tech (french) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6``) (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 2 | WPW10196405 | Bowl, Drip (8``) (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 3 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 509.93 | |||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 8.73 | ||||
| 7 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 8 | WPW10259868 | Element (6``) (right Front, Left Rear) (Replaces: W10259868) |
|
Immediately | $ 124.76 | ||||
| 8 | WPW10259865 | Element (8``) (left Front, Right Rear) (Replaces: W10259865) |
|
Immediately | $ 117.69 |
