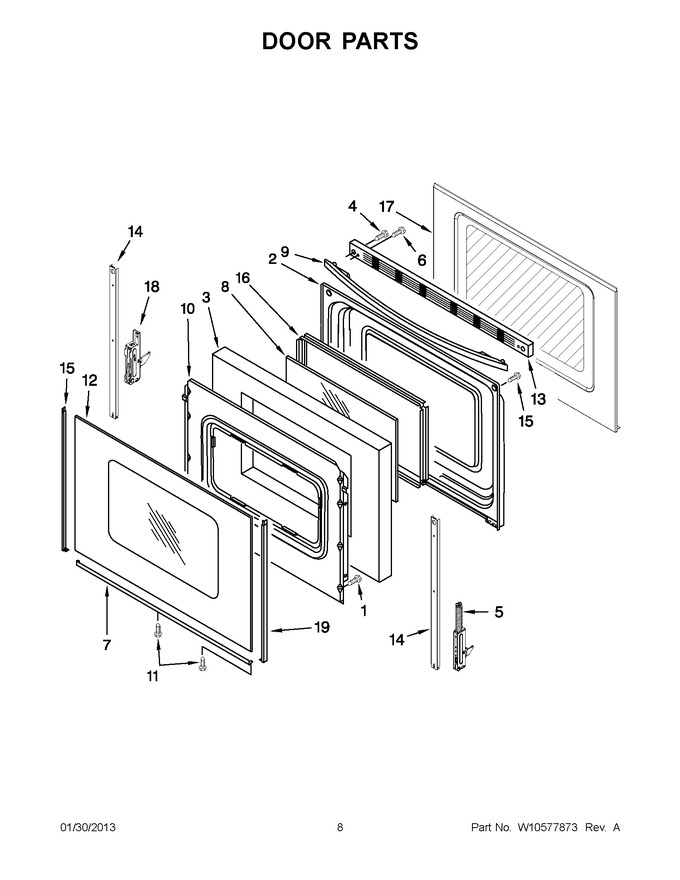

04 - Door Parts
05 - Drawer & Broiler Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 5 | WPW10299224 | Hinge, Active (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 6 | WPW10465148 | Screw (Replaces: W10465148) |
|
Immediately | $ 8.79 | ||||
| 7 | WP8523177 | Trim, Lower Door (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 7 | W11594186 | Trim, Lower Door (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 9 | W10300490 | Handle, Oven Door (black) |
|
Immediately | $ 156.75 | ||||
| 9 | W10300489 | Handle, Oven Door (white) |
|
Immediately | $ 244.88 | ||||
| 10 | W11699790 | Retainer, Insulation (Replaces: 9761504) |
|
- | |||||
| 11 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 12 | WPW10409945 | Glass, Window (white) (Replaces: W10409945) |
|
Immediately | $ 248.79 | ||||
| 12 | WPW10409946 | Glass, Window (black) (Replaces: W10409946) |
|
$ 319.25 | |||||
| 13 | W10817433 | Trim, Oven Door Vent (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 13 | WPW10310922 | Trim, Oven Door Vent (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 27.68 | ||||
| 15 | W10761018 | Black, Left Hand (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 15 | WP8523172 | White, Left Hand (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 17 | W10330077 | Stainless |
|
$ 202.23 | |||||
| 18 | WPW10299227 | Hinge (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 19 | W10761014 | Right Door Trim (black, Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 19 | WP8523166 | Right Door Trim (white, Right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 |
