SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts

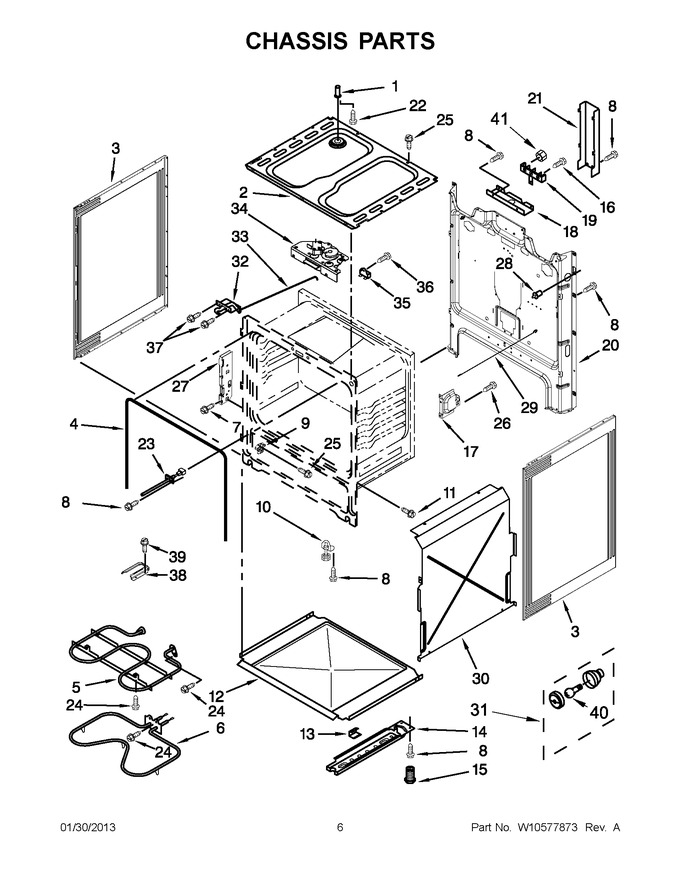

03 - Chassis Parts
04 - Door Parts
05 - Drawer & Broiler Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222268 | Vent Tube (Replaces: 9755804) |
|
$ 104.30 | |||||
| 2 | W11699791 | Box, Burner (Replaces: W10209613) |
|
$ 262.30 | |||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 178.50 | ||||
| 4 | W11542153 | Seal, Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 5 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 154.62 | ||||
| 6 | WPW10308477 | Element, Bake (Replaces: W10308477) |
|
Immediately | $ 71.86 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 9 | W10763667 | Glide, Drawer Front (Replaces: W10317898) |
|
Immediately | $ 107.68 | ||||
| 10 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 12 | WP8054068 | Retainer, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 13 | W10137382 | Clip, Glass |
|
Immediately | $ 48.42 | ||||
| 14 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 14 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 15 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 16 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 17 | W10404688 | Clip, Oven Support |
|
$ 17.69 | |||||
| 18 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 19 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 30.13 | ||||
| 20 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 21 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 22 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 8.06 | |||||
| 23 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 24 | WP3196174 | Screw, Grounding (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 25 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 26 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 27 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 28 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 29 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 30 | W10450380 | Retainer, Insulation |
|
- | |||||
| 31 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 87.01 | ||||
| 32 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 256.36 | |||||
| 33 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 34 | WPW10107820 | Assembly, Latch Rear (Replaces: W10107820) |
|
$ 309.55 | |||||
| 35 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 36 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 37 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 38 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 39 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 40 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 41 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 55.47 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 115.11 |
