SELECT A DIAGRAM

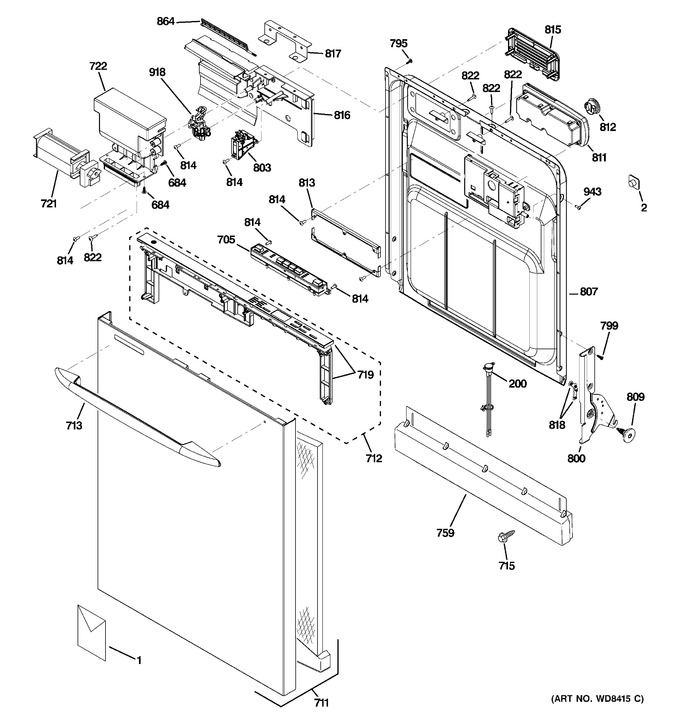

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-30284		Pm Install Instructions		Appelez-nous	-
1	31-30637		Pm Sheet Mini Manual		Appelez-nous	-
1	49-55078		Pm Manual Use & Care		Appelez-nous	-
1	WD01X10566		Scr 10-24 Unc Hxp 1s Zn		Appelez-nous	-
2	WD01X10552		Lens Indicator		Appelez-nous	-
200	WG04A01172		Tco Assembly   (Replaces: WD01X10537)				$ 92.17
684	WD02X10166		Scr 8-18 Ab Hw 1/2 Ss		Appelez-nous	-
705	WG04L03138		Button Asm Silicone   (Replaces: WD01X10536)			Immediately	$ 162.14
711	WD34X11774		Panel Asm Outer		Appelez-nous	-
712	WG04L01563		Console & Cover Asm   (Replaces: WD27X10363)				$ 1,087.44
713	WD13X10065		Handle Asm Ss Door		Appelez-nous	-
715	WD02X10200		Screw		Appelez-nous	-
719	WD27X10344		Console Cover Asm		Appelez-nous	-
721	WG04F03674		Blower Dishwasher   (Replaces: WD26X10056)				$ 183.41
722	WG04F04688		Inlet Transition Piece   (Replaces: WD12X10351)				$ 57.27
759	WD27X10324		Toekick Asm		Appelez-nous	-
795	WG04A00378		Screw   (Replaces: WD2X444)				$ 3.97
799	WD02X10201		Scr 10-24 Tap Rnp 1/2		Appelez-nous	-
800	WG04L01512		Arm Hinge Lh Asm   (Replaces: WD14X10046)				$ 217.35
800	WD14X10047		Arm Hinge Rh Asm		Appelez-nous	-
803	WG02F02962		Latch Asm   (Replaces: WD13X10031)				$ 82.11
807	WD31X10129		Door Inner & Gasket		Appelez-nous	-
809	WG04A01243		Scr 10-32gx Flt25 .615 S   (Replaces: WD02X10084)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 171.12
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70
813	WG04A00035		Bracket Detergent Disp   (Replaces: WD01X10207)				$ 6.35
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 30.18
816	WD01X10548		Vent Asm		Appelez-nous	-
817	WD01X10551		Latch Bracket		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
864	WD12X10067		Flapper Vent		Appelez-nous	-
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 69.95
943	WZ05X0219		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
