1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly

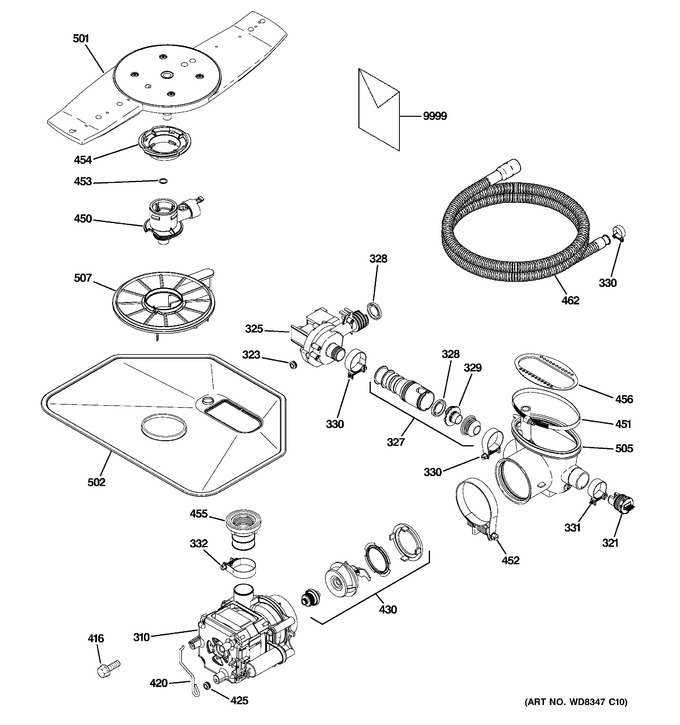

5 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 310 | WG04F04741 | Mechanism Asm (Replaces: WD26X10038) |
|
Immediately | $ 282.59 | ||||
| 321 | WD21X10272 | Sensor Turbidity |
|
- | |||||
| 323 | WD01X10269 | Grommet |
|
- | |||||
| 325 | WG02F03017 | Pump Drain Asm (Replaces: WD26X10048) |
|
Immediately | $ 205.08 | ||||
| 327 | WD12X10279 | Adaptor Pump Asm |
|
- | |||||
| 328 | WD01X10406 | Valve Flapper Dual Pump |
|
- | |||||
| 329 | WD01X10405 | Seat Check Valve |
|
- | |||||
| 330 | WG04A00072 | Clamp (Replaces: WD01X10103) |
|
$ 9.53 | |||||
| 331 | WG04A00073 | Clamp (Replaces: WD01X10104) |
|
Immediately | $ 12.71 | ||||
| 332 | WD01X10105 | Clamp |
|
- | |||||
| 416 | WD02X10141 | Scr 10-32 Tt Hex .575s |
|
- | |||||
| 420 | WD01X10211 | Hanger Motor |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 430 | WD19X10039 | Blade Cutter |
|
- | |||||
| 430 | WG02A00446 | Kit - Impeller Asm (Replaces: WD19X10038) |
|
$ 118.07 | |||||
| 450 | WD18X10050 | Hub Venturi Asm |
|
- | |||||
| 450 | WD18X10025 | Hub Venturi Asm |
|
- | |||||
| 451 | WG04A01069 | Clamp Sump (Replaces: WD01X10210) |
|
$ 19.06 | |||||
| 452 | WG04A00077 | Clamp Hose (Replaces: WD1X1392) |
|
$ 15.88 | |||||
| 453 | WG04A01023 | Bearing Spray Arm Low (Replaces: WD01X10107) |
|
$ 3.97 | |||||
| 454 | WG04A01182 | Nut Hub Fine Filter (Replaces: WD12X10061) |
|
Immediately | $ 57.25 | ||||
| 455 | WG04F00179 | Connector Pump Asm (Replaces: WD18X10010) |
|
Immediately | $ 52.48 | ||||
| 456 | WG04L01844 | Plate Sump (Replaces: WD01X10219) |
|
$ 240.81 | |||||
| 462 | WG04F00333 | Drain Tube Asm (Replaces: WD24X10035) |
|
Immediately | $ 92.96 | ||||
| 501 | WD22X10063 | Arm Spray Low Asm |
|
- | |||||
| 502 | WD22X10038 | Filter Coarse |
|
- | |||||
| 505 | WG01L00289 | Sump Inlet (Replaces: WD18X10026) |
|
Immediately | $ 83.70 | ||||
| 507 | WG04F04636 | Filter Fine Asm (Replaces: WD12X10109) |
|
Immediately | $ 109.01 | ||||
| 9999 | WG04A01014 | Bag And Bracket Asm (Replaces: WD35X10372) |
|
$ 25.41 | |||||
| WG04A00321 | Vis |
|
$ 15.88 | ||||||
| WG04A00072 | Clamp |
|
$ 9.53 | ||||||
| WG04A00015 | Arm Spray Low Asm |
|
$ 101.18 | ||||||
| WG03F01990 | Latch Keeper Asm |
|
$ 75.23 | ||||||
| WG03F00838 | Valve D''eau Entree |
|
Immediately | $ 65.23 | |||||
| WG02L02271 | Panneau Externe |
|
$ 358.97 | ||||||
| WG02L01023 | Couvercle |
|
$ 20.65 | ||||||
| WG02L01019 | Spring Gasket |
|
$ 19.06 | ||||||
| WG04L01582 | Couvercle |
|
$ 30.18 | ||||||
| WG02F02962 | Latch & Switch Asm |
|
$ 82.11 | ||||||
| WG01F01545 | Hose Fill |
|
$ 113.54 | ||||||
| WG04L03138 | Bouton Asm., Silicone |
|
Immediately | $ 162.14 | |||||
| WG04L01858 | Rack Fixed Asm Upper |
|
$ 188.79 | ||||||
| WG04L01851 | Charniﾃ#re |
|
$ 63.62 | ||||||
| WG04L01736 | Moyeu |
|
$ 9.31 | ||||||
| WG04L01684 | Filter Sump & Cover Asm |
|
Immediately | $ 135.93 | |||||
| WG04L01614 | Door Inner & Gasket |
|
$ 199.77 | ||||||
| WG02F03017 | Pompe |
|
Immediately | $ 205.08 | |||||
| WG04L01563 | Console & Cover Asm |
|
$ 1,087.44 | ||||||
| WG04L01520 | Arm Spray Upper Asm |
|
$ 59.78 | ||||||
| WG04L01313 | Ressort De La Porte |
|
$ 147.99 | ||||||
| WG04L00677 | Link Hinge Arm |
|
Immediately | $ 6.35 | |||||
| WG04L00218 | Gasket Water Inlet |
|
$ 21.63 | ||||||
| WG04L00215 | Gasket |
|
Immediately | $ 106.25 | |||||
| WG04L00110 | Cover Water Inlet |
|
$ 9.53 | ||||||
| WG04L00093 | Cap Rinse Asm |
|
$ 39.70 | ||||||
| WG04F04741 | Mecanique Asm. |
|
Immediately | $ 282.59 | |||||
| WG04F04688 | Piece De Transition D'' Entre |
|
$ 57.27 | ||||||
| WG04F04636 | Assemblage Filtre |
|
Immediately | $ 109.01 | |||||
| WG04F04554 | Conduit Main |
|
$ 85.89 | ||||||
| WG04F03674 | Blower Dishwasher |
|
$ 183.41 | ||||||
| WG04F01063 | Switch Flood Asm |
|
$ 77.98 | ||||||
| WG04F00692 | Module Rinse And Cap Asm |
|
Immediately | $ 171.12 | |||||
| WG04F00462 | Funnel & Gasket Assy |
|
$ 15.72 | ||||||
| WG04F00333 | Drain Tube Asm |
|
Immediately | $ 92.96 | |||||
| WG04F00163 | Conduit Principale |
|
$ 85.42 | ||||||
| WG04F00096 | C├#ble Asm |
|
Immediately | $ 15.88 | |||||
| WG04A02643 | Module Control Asm Kit |
|
$ 181.44 | ||||||
| WG04A02628 | Module Control Asm Kit |
|
$ 280.17 | ||||||
| WG04A01336 | Support D''event Asm |
|
$ 973.98 | ||||||
| WG04A01289 | Bras Gicleur Inter Asm, Monogram |
|
$ 63.60 | ||||||
| WG04A01261 | Screw 8-32 B Hxw 1.13 Ss |
|
$ 15.88 | ||||||
| WG04A01182 | Nut Hub |
|
Immediately | $ 57.25 | |||||
| WG04A01172 | Main Control Tco Asm Kit |
|
$ 92.17 | ||||||
| WG04A01129 | Inner Rail + Clips Uppr Rack |
|
$ 84.41 | ||||||
| WG04A01126 | Hub Spray Arm Mid |
|
$ 6.35 |
