SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism

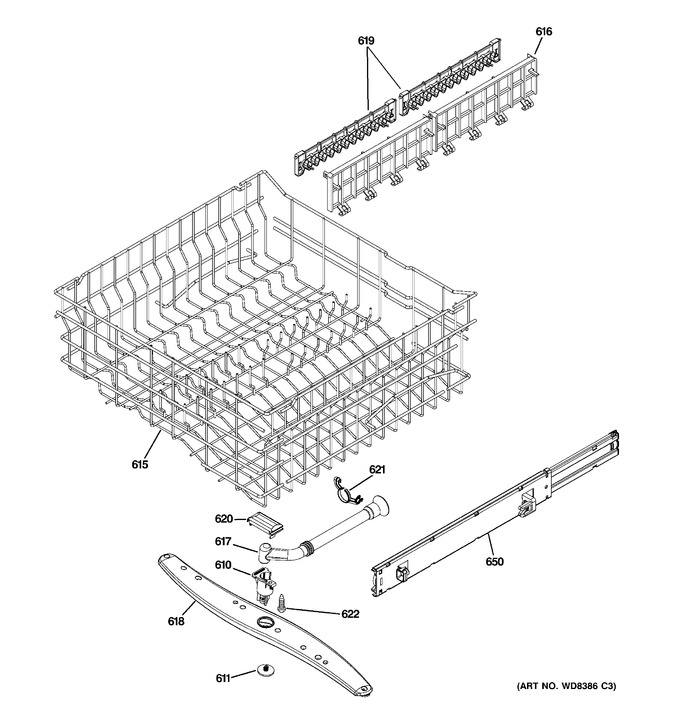

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
610	WG04A01126		Hub Spray Arm Mid   (Replaces: WD12X10353)				$ 6.35
611	WG04A01231		Scr B-16 Hxw 1/2 Ss   (Replaces: WD02X10169)				$ 6.35
615	WD28X10297		Rack Fixed Asm Upper		Appelez-nous	-
616	WD28X10104		Shelf Multi Purpose		Appelez-nous	-
617	WG04F04558		Conduit Spray Arm Mid   (Replaces: WD12X10110)				$ 62.03
618	WG04A01289		Arm Spray Mid Asm   (Replaces: WD22X10083)				$ 63.60
619	WG04L01708		Gripper Stemware   (Replaces: WD28X10105)				$ 63.17
620	WG04A02404		Bracket Spray Arm Mid   (Replaces: WD12X10111)				$ 6.35
621	WD12X10114		Conduit Carrier Mid		Appelez-nous	-
622	WG04A00176		Scr 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
650	WD30X10039		Inner Rail Upper Rack		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
