SELECT A DIAGRAM

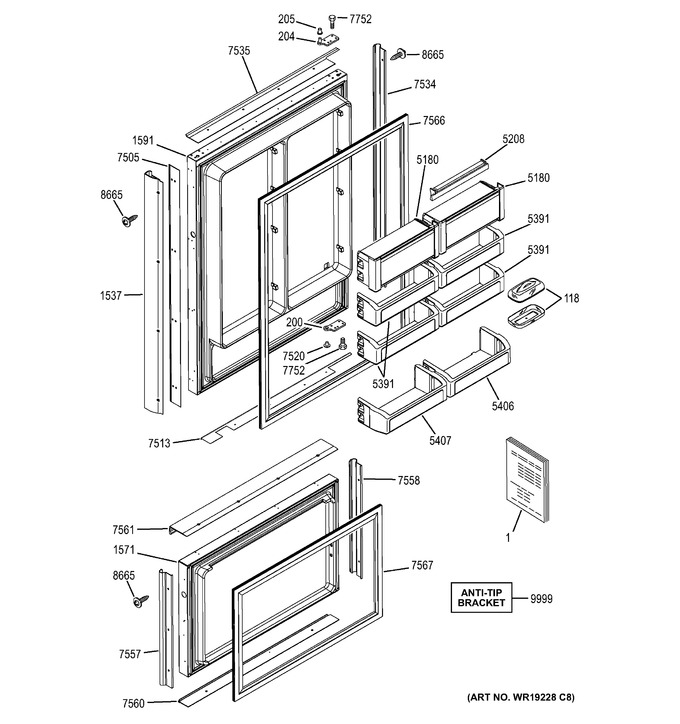

1 - Doors


2 - Controls & Components


3 - Freezer Section, Trim & Components


4 - Shelves & Drawers


5 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60423-3		Owners Manual		Appelez-nous	-
1	31-46173-1		Pm Instruct Install Bm		Appelez-nous	-
1	31-51767-2		Pm Mini Manual		Appelez-nous	-
118	WR19X10005		Butter Dish And Cover		Appelez-nous	-
200	WR13X10657		Hinge Door Btm		Appelez-nous	-
204	WR13X10210		Hinge Door Top Ff Lh		Appelez-nous	-
205	WG03A00012		Bushing Hinge Top   (Replaces: WR02X10954)				$ 44.40
1537	WR12X10994		Trim Bm Ff Handle		Appelez-nous	-
1571	WR78X10889		Btm Mt Fz Foamed Dr		Appelez-nous	-
1591	WR78X24226		Door Foamed Asm Bm Lh		Appelez-nous	-
5180	WR71X10142		Assy Dairy Comp		Appelez-nous	-
5208	WR22X10007		Seal Dairy Assy		Appelez-nous	-
5391	WG02L00043		Bin Ff Door W/window   (Replaces: WR71X10138)				$ 94.53
5406	WR01L08881		Bin Door Ff Deep Rh   (Replaces: WR71X10139)				$ 85.03
5407	WG03L00003		Bin Door Ff Deep Lh   (Replaces: WR71X10140)				$ 96.90
7505	WR12X10641		Ff Door Handle Trim		Appelez-nous	-
7513	WR17X11560		Ff Door Btm- Rh Hinge		Appelez-nous	-
7520	WR01X10257		Pin Btm Lower Hinge		Appelez-nous	-
7534	WR17X11558		Ff Door Trim Rh Hinge		Appelez-nous	-
7535	WR17X11559		Ff Door Trim Top- Rh Hin		Appelez-nous	-
7557	WR17X11553		Fz Door Trim Rh		Appelez-nous	-
7558	WR17X11554		Fz Door Trim Lh		Appelez-nous	-
7560	WR17X11556		Fz Door Trim Bottom		Appelez-nous	-
7561	WR12X20934		Trim Handle Fz Bm		Appelez-nous	-
7566	WG03L00728		Gasket Door   (Replaces: WR24X10207)				$ 157.69
7567	WR78X20985		Bm Fz Drawer Gasket		Appelez-nous	-
7752	WR01X21024		Screw, 1/4-20 Tt Bht .87		Appelez-nous	-
8665	WR01X24363		Scr 8- 18 Ba Ovt 5/8 Ss		Appelez-nous	-
9999	WR01X10825		Bracket Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
