SELECT A DIAGRAM

1 - Doors


2 - Controls & Components


3 - Freezer Section, Trim & Components


4 - Shelves & Drawers


5 - Machine Compartment

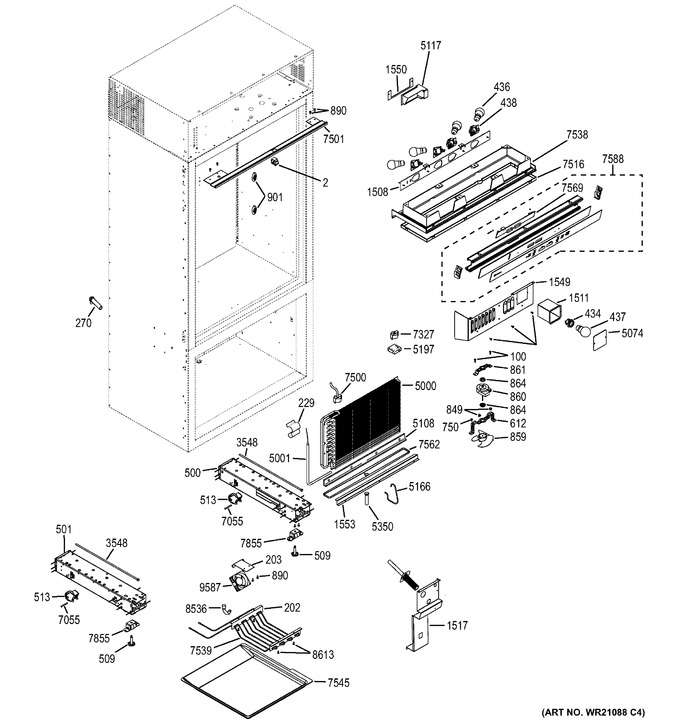

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WR23X475		Rocker Swt		Appelez-nous	-
100	WR01X23106		Screw, 10-24 X 1/2 Type		Appelez-nous	-
202	WR02X12572		Bracket Cond Support Bm		Appelez-nous	-
203	WR02X12566		Bracket Fan Mtg		Appelez-nous	-
229	WR01A00194		Clip Evap Thermistor   (Replaces: WR02X10552)				$ 4.17
270	WR02X13037		Grommet Water Fill		Appelez-nous	-
434	WR02X11626		Light Socket Ff/fz		Appelez-nous	-
436	40A15		40watt 15amp			Immediately	$ 1.98
437	60A		60a - 2bulbs		Appelez-nous	-
438	WG03F01610		Socket & Terminal   (Replaces: WR02X10591)				$ 12.71
500	WR13X10965		Base Channel Rh		Appelez-nous	-
501	WR13X10966		Base Channel Lh		Appelez-nous	-
509	WR02X10479		Leveling Leg		Appelez-nous	-
513	WR2X8377		Wheel Asm.		Appelez-nous	-
612	WR02X10653		Bracket Orifice Fan		Appelez-nous	-
750	WR1X1826		#8-18 Type Ab X 3/8 Ph P		Appelez-nous	-
849	WR01A00163		Bumper   (Replaces: WR02X10540)			Immediately	$ 6.35
859	WR60X10050		Blade Fan Motor		Appelez-nous	-
860	WR01F01622		Motor Evap Dc   (Replaces: WR60X10185)			Immediately	$ 69.95
861	WR02X11622		Bracket Evap Fan Btm		Appelez-nous	-
864	WR02X10519		Grommet Evap Fan		Appelez-nous	-
890	WG04A01239		#10x1 Ph Sms   (Replaces: WD2X295)				$ 3.97
901	WR71X10325		Ff Air Diffuser		Appelez-nous	-
1508	WR02X11023		Fixture Lighting		Appelez-nous	-
1511	WR74X10085		Bracket Light Socket Fz		Appelez-nous	-
1517	WR02X13607		Cover Fill Tube		Appelez-nous	-
1549	WR74X10344		Cover Evap Fan		Appelez-nous	-
1550	WR17X11009		Bracket Damper Mtg		Appelez-nous	-
1553	WR17X11010		Water Collector		Appelez-nous	-
3548	WG03F00037		Base Shaft   (Replaces: WR01X10256)				$ 14.29
5000	WR85X10118		Evaporator Bm		Appelez-nous	-
5001	WR51X10125		Heater Defrost		Appelez-nous	-
5074	WR17X10347		Light Shield Fz		Appelez-nous	-
5108	WR17X10349		Drain Baffle		Appelez-nous	-
5117	WR09X10065		Damper Motorized		Appelez-nous	-
5166	WR01X10045		Wire Ret Evap Heater		Appelez-nous	-
5197	WR02X10145		Baffle Evap Lh		Appelez-nous	-
5350	WR17X10655		Drain Tube		Appelez-nous	-
7055	WR02X10478		Axle Wheel		Appelez-nous	-
7327	WR50X10045		Thermodisc, Defrost Ff		Appelez-nous	-
7500	WR50X10105		Tod Evap				$ 24.45
7501	WR17X11561		Switch Plate Lh		Appelez-nous	-
7516	WR17X11014		Light Shield Ff		Appelez-nous	-
7538	WR17X11015		Trim Lighting Ff		Appelez-nous	-
7539	WR01F02892		Prod Serv Condenser   (Replaces: WR84X10022)				$ 403.54
7545	WR17X11016		Drain Pan		Appelez-nous	-
7562	WR17X11098		Evaporator Trough		Appelez-nous	-
7569	WR55X10846		Board Asm Control Temp		Appelez-nous	-
7588	WR55X10918		Kit Hmi Asm Bm		Appelez-nous	-
7855	WR02X11210		Front Roller Asm		Appelez-nous	-
8536	WR17X10355		Drain Tube Trap		Appelez-nous	-
8613	WR1X2129		Screw, #8-15 X 1/2 Cr Pa		Appelez-nous	-
9587	WR60X10225		Fan Fresh Food		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
