View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

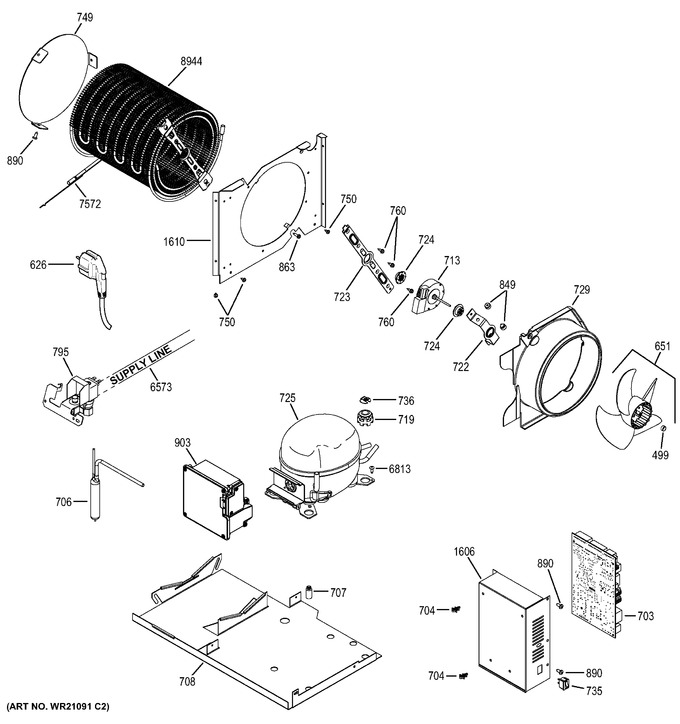

1 - Doors
2 - Controls & Components
3 - Freezer Section, Trim & Components
4 - Shelves & Drawers
5 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 499 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 626 | WG03F00911 | Power Cord (Replaces: WR23X10300) |
|
$ 85.41 | |||||
| 651 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 703 | WR55X11085 | Board Asm Main Control |
|
- | |||||
| 704 | WR01X10301 | Main Board Stand Offs |
|
- | |||||
| 706 | WR74X10125 | Dryer |
|
- | |||||
| 707 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 708 | WR17X12348 | System Pan |
|
- | |||||
| 713 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 719 | WR02X22869 | Grommet |
|
- | |||||
| 722 | WG03F00071 | Bracket Cond Fan (mtg) (Replaces: WR02X11863) |
|
Immediately | $ 27.00 | ||||
| 723 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 724 | WR01A00315 | Grommet Fan Motor (Replaces: WR02X10520) |
|
$ 4.17 | |||||
| 725 | WR87X10123 | Inverter Compressor Emb |
|
- | |||||
| 729 | WR17X11252 | Shroud Condenser |
|
- | |||||
| 735 | WR23X10571 | Master Light Switch |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 749 | WR17X10694 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1826 | #8-18 Type Ab X 3/8 Ph P |
|
- | |||||
| 760 | WR01X10317 | Scr 8-32 Ca Hxw 1/2 |
|
- | |||||
| 795 | WR57X10075 | Valve Water Asm |
|
- | |||||
| 849 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 863 | WR01X10652 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 890 | WG04A01239 | #10x1 Ph Sms (Replaces: WD2X295) |
|
$ 3.97 | |||||
| 903 | WR55X11138 | Inverter Asm Comp Mount |
|
- | |||||
| 1606 | WR02X12570 | Cover Motherboard |
|
- | |||||
| 1610 | WR17X12350 | Cond Baffle |
|
- | |||||
| 6573 | WR02X13015 | Tube Asm Water Valve |
|
- | |||||
| 6813 | WR01X10484 | 8-32 X 5/8" Ph Ss Tcs |
|
- | |||||
| 7572 | WR86X10054 | Tube Suction & Cap Asm |
|
- | |||||
| 8944 | WR84X10090 | Condenser & Bracket Asm |
|
- | |||||
| WG03F02133 | Drawer Slide Asm Lh Fz |
|
$ 333.76 | ||||||
| WG03F02134 | Drawer Slide Asm Rh Fz |
|
$ 367.16 | ||||||
| WG03L00003 | Bin Door Ff |
|
$ 107.67 | ||||||
| WG03L01668 | Veg Pan M |
|
Immediately | $ 169.13 | |||||
| WG03L05143 | Asm Closure |
|
$ 74.58 | ||||||
| WG03L05844 | Cond Bottom Bm |
|
- | ||||||
| WG02L00043 | Bin Dr Ff M |
|
$ 105.03 | ||||||
| WR01L08881 | Bin Dr Ff M |
|
$ 94.48 |
