SELECT A DIAGRAM

10 - Machine Compartment


1 - Dispenser Door


2 - Clad Components


3 - Doors & Bins


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Case Parts

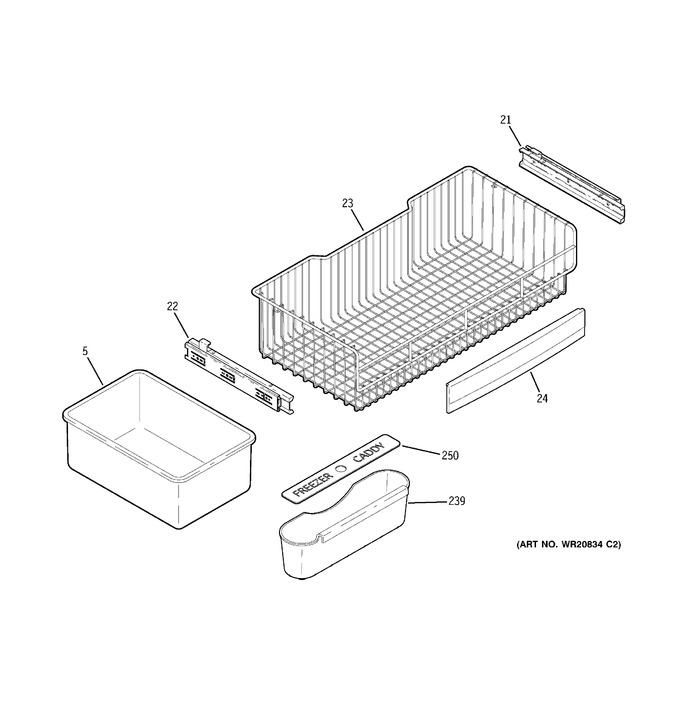

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR30X10158		Bucket Ice 25		Appelez-nous	-
21	WR72X10404		Slide Asm		Appelez-nous	-
22	WR01A00786		Slide Asm   (Replaces: WR72X10405)				$ 47.25
23	WR21X10241		Basket Upper Fz 25		Appelez-nous	-
24	WR12X10999		Handle Basket Fz		Appelez-nous	-
239	WR21X10247		Basket Pizza		Appelez-nous	-
250	WR02X13715		Door Trap		Appelez-nous	-
