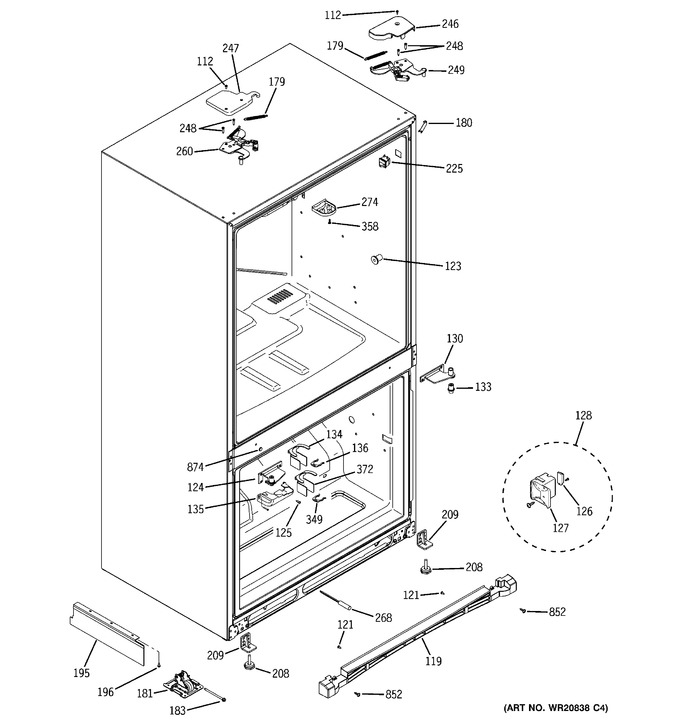

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WR01F03225 | Screw Hinge Cover (Replaces: WR01X10379) |
|
$ 3.97 | |||||
| 119 | WR02X12380 | Grille Base Cover |
|
- | |||||
| 121 | WR01A00664 | Scr 12-24 Tt Ovt 1.000 S (Replaces: WR01X10918) |
|
$ 4.20 | |||||
| 123 | WR01A00968 | Support Shelf (Replaces: WR02X12187) |
|
Immediately | $ 3.97 | ||||
| 124 | WR13X10934 | Center Hinge Asm Rh |
|
- | |||||
| 125 | WR01A00660 | Scr 12-24 Tt Hxt20 .90 S (Replaces: WR01X10683) |
|
$ 4.20 | |||||
| 126 | WR01F01731 | Sensor Humidity (Replaces: WR02X12711) |
|
Immediately | $ 93.17 | ||||
| 127 | WR17X12443 | Housing Humidity Sensor |
|
- | |||||
| 128 | WR01F01732 | Sensor Humidity Asm (Replaces: WR55X10748) |
|
$ 132.44 | |||||
| 130 | WR13X10935 | Center Hinge Asm Lh |
|
- | |||||
| 133 | WR01A00465 | Pin Hinge Adj Bm (Replaces: WR01X10793) |
|
Immediately | $ 33.35 | ||||
| 134 | WR02X12587 | Support Water Line |
|
- | |||||
| 135 | WR02X13511 | Cover Hinge |
|
- | |||||
| 136 | WR02X13059 | Clip Locking |
|
- | |||||
| 179 | WR01A00582 | Spring Closure (Replaces: WR01X10827) |
|
Immediately | $ 4.17 | ||||
| 180 | WR01L01085 | Cap Corner Oc Bk (Replaces: WR02X10781) |
|
$ 4.20 | |||||
| 181 | WR01L02983 | Mobility Front Asm (Replaces: WR02X12334) |
|
$ 15.28 | |||||
| 183 | WR01X10609 | Screw Mobility |
|
- | |||||
| 195 | WR17X12424 | Separator Air Hiside |
|
- | |||||
| 196 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 208 | WR01A00718 | Screw Leveling (Replaces: WR01X10686) |
|
$ 4.20 | |||||
| 209 | WR02X12378 | Bracket Leg Asm |
|
- | |||||
| 225 | WG03F05844 | Switch Light (Replaces: WR23X10179) |
|
Immediately | $ 65.21 | ||||
| 246 | WR02X12388 | Cover Hinge Top Rh |
|
- | |||||
| 247 | WR02X13513 | Hinge Cover Lh |
|
- | |||||
| 248 | WR01X10792 | Scr 12-24 Tt Hx 7/8 S |
|
- | |||||
| 249 | WR01L02473 | Hinge Closure (Replaces: WR13X10427) |
|
$ 90.29 | |||||
| 260 | WR13X10936 | Hinge Closure Asm |
|
- | |||||
| 268 | WR55X10711 | Sensor Temperature |
|
- | |||||
| 274 | WR02X13500 | Striker Top Mullion |
|
- | |||||
| 349 | WR02X13498 | Support Water Line |
|
- | |||||
| 358 | WR01X10065 | Scr 8-18 Ba Por 5/8 Ss |
|
- | |||||
| 372 | WR02X13503 | Clip Locking |
|
- | |||||
| 852 | WR01A00686 | Scr 8-18 Ab Pnp 5/8 S (Replaces: WR01X10858) |
|
$ 3.97 | |||||
| 874 | WR01X10987 | Washer Hinge |
|
- |
