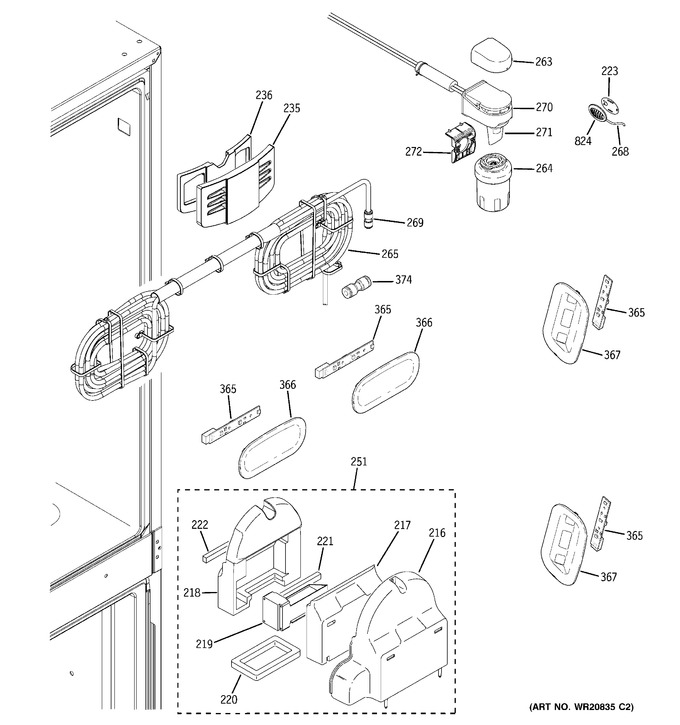

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
216	WR01L00720		Cover Air Tower Ff   (Replaces: WR17X12260)				$ 74.29
217	WR17X12261		Eps Air Tower Ff		Appelez-nous	-
218	WR17X12262		Eps Air Tower Back		Appelez-nous	-
219	WR01F00017		Damper Asm Motorized   (Replaces: WR60X10239)			Immediately	$ 193.86
220	WR01L02119		Gasket Ff Inlet   (Replaces: WR14X10227)				$ 40.23
221	WR14X10228		Gasket Tower Ff		Appelez-nous	-
222	WR01L06216		Gasket Tower Ff   (Replaces: WR14X10229)			Immediately	$ 3.97
223	WR01L04393		Shunt Sensor   (Replaces: WR02X10668)			Immediately	$ 15.88
235	WR17X12501		Vent Duct Vertical Asm		Appelez-nous	-
236	WR17X12266		Eps Vent Duct Vertical		Appelez-nous	-
251	WR01F00017		Air Tower Asm   (Replaces: WR17X12456)			Immediately	$ 193.86
263	WR17X12792		Cover Water Filter		Appelez-nous	-
264	PMMWF		Filter Canister   (Replaces: MWF)			Immediately	$ 81.88
265	WR01L06232		Double Coil Water Tank   (Replaces: WR17X12997)				$ 40.49
268	WR55X10711		Sensor Temperature		Appelez-nous	-
269	WR01F02845		Union Connector Reg   (Replaces: WR02X11330)			Immediately	$ 19.06
270	WR01F00796		Filter Asm And Tube   (Replaces: WR17X11894)			Immediately	$ 189.15
271	WG03L10111		Cap Filter Bypass   (Replaces: WR02X11705)			Immediately	$ 19.97
272	WR17X12757		Spacer Water Filter		Appelez-nous	-
365	WR01F00268		Board Led Light Asm   (Replaces: WR55X11088)			Immediately	$ 29.08
366	WR17X13002		Cover Led Meat Pan		Appelez-nous	-
367	WR17X13003		Cover Led Asm		Appelez-nous	-
374	WR01L00012		1/4 Union Connector   (Replaces: WR02X13514)				$ 10.52
824	WR01L02290		Grille Sensor   (Replaces: WR02X13224)			Immediately	$ 3.97
