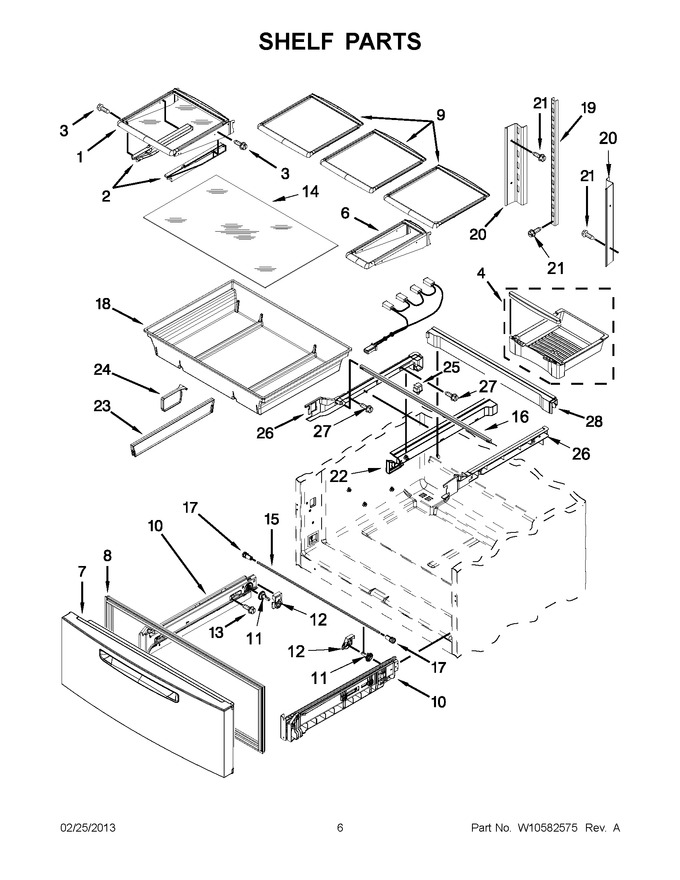

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP12883508SP | Shelf, Glass (Replaces: 12883508SP) |
|
$ 288.57 | |||||
| 2 | WPW10194032 | Glide, Pantry (right Hand) (Replaces: W10194032) |
|
$ 114.92 | |||||
| 2 | WPW10194031 | Glide, Pantry (left Hand) (Replaces: W10194031) |
|
$ 118.29 | |||||
| 3 | W11233072 | Screw (Replaces: 12990302SP) |
|
Immediately | $ 13.25 | ||||
| 4 | WPW10319333 | Pan, Snack (Replaces: W10319333) |
|
$ 130.46 | |||||
| 5 | W10335721 | Harness, Rc-led |
|
- | |||||
| 6 | W11197490 | Shelf, Mini (stationary) (Replaces: 12885501) |
|
$ 217.85 | |||||
| 7 | 13107114FQ | Pantry Door (sparkle Steel) (Replaces: 13107114F) |
|
- | |||||
| 8 | WPW10443326 | Gasket-pantry (grey) (Replaces: W10443326) |
|
$ 312.90 | |||||
| 9 | W11402525 | Shelf, Glide Out (Replaces: 12883507) |
|
$ 211.00 | |||||
| 10 | W11093713 | Adapter, Pantry (left Hand) (Replaces: W10295155) |
|
$ 127.30 | |||||
| 10 | W11093714 | Adapter, Pantry (right Hand) (Replaces: W10295157) |
|
$ 124.49 | |||||
| 11 | W10277360 | Gear, Spur |
|
$ 28.67 | |||||
| 12 | W10294414 | Cover, Gear (right Hand) |
|
$ 75.13 | |||||
| 12 | W10284709 | Cover, Gear (left Hand) |
|
$ 66.50 | |||||
| 13 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 10.22 | ||||
| 14 | WPW10296571 | Glass, Pantry Shelf (Replaces: W10296571) |
|
$ 222.39 | |||||
| 15 | W10298176 | Shaft, Rack |
|
- | |||||
| 16 | WP12227305WD | Brace, Crisper Cover (Replaces: 12227305WD) |
|
$ 97.52 | |||||
| 17 | WPW10277361 | Collar, Gear (Replaces: W10277361) |
|
$ 10.88 | |||||
| 18 | WPW10563110 | Pan, Pantry (Replaces: W10563110) |
|
$ 238.95 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 27.17 | ||||
| 20 | W10251968 | Ladder, Side (left Hand) |
|
$ 24.64 | |||||
| 20 | W10251965 | Ladder, Side (right Hand) |
|
$ 27.97 | |||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 22 | W10311725 | Cover, Pantry Rail (left Hand) |
|
$ 16.42 | |||||
| 23 | W11340457 | Divider, Pantry (Replaces: W10458683) |
|
$ 37.99 | |||||
| 24 | W10458684 | Divider, Sliding |
|
- | |||||
| 25 | W11384469 | Switch, Light (Replaces: C3680314) |
|
Immediately | $ 35.18 | ||||
| 26 | W10311723 | Rail, Pantry (left Hand) |
|
$ 127.83 | |||||
| 26 | W11715934 | Rail, Pantry (right Hand) (Replaces: W10311726) |
|
$ 41.24 | |||||
| 27 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 28 | W10311727 | Rail, Rear Pantry |
|
- |
