01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Freezer Liner Parts


06 - Refrigerator Door Parts


07 - Dispenser Front Parts


08 - Freezer Door Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)

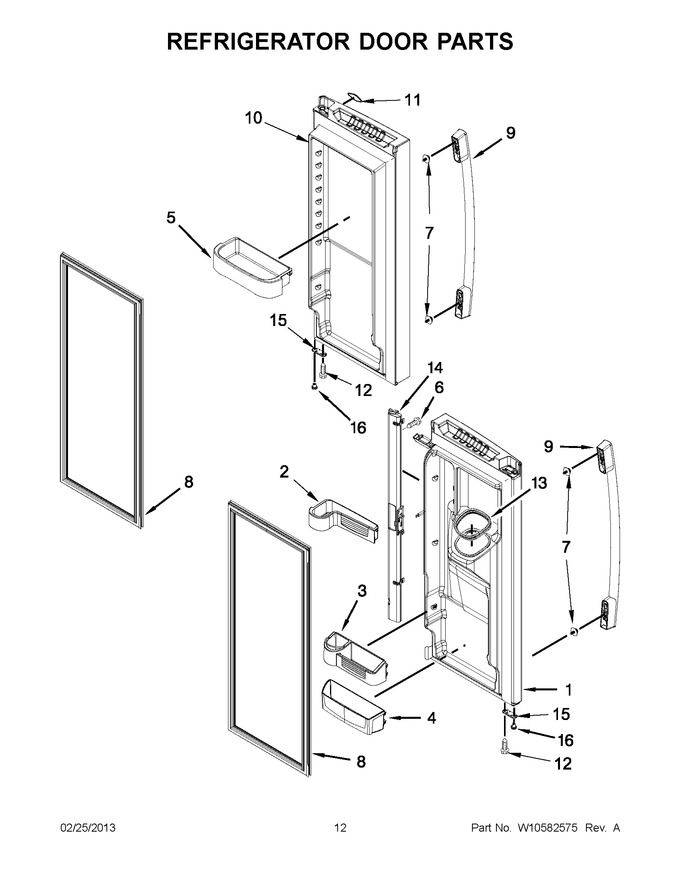

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13107325F		Door, Left (sparkle Steel)		Appelez-nous	-
2	W10290555		Bucket-wine Bottle				$ 34.29
3	W10290553		Bucket, Upper		Appelez-nous	-
4	W10297151		Bucket, Lower		Appelez-nous	-
5	WP12840004		Bucket, Gallon   (Replaces: 12840004)				$ 94.89
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
8	W10830274		Gasket, Door (grey)   (Replaces: W10443273)			Immediately	$ 335.87
9	W10252288A		Handle, Door Stainless   (Replaces: W10252288)				$ 129.86
10	13107321FQ		Door, Right (sparkle Steel)   (Replaces: 13107321F)		Appelez-nous	-
11	WPW10170766		Badge, Standard Maytag   (Replaces: W10170766)			Immediately	$ 70.50
12	WP98165		Screw   (Replaces: 12990521)				$ 8.57
13	WPW10287601		Seal, Ice Chute   (Replaces: W10287601)			Immediately	$ 32.76
14	WPW10464469		Mullion, Door (grey)   (Replaces: W10464469)				$ 182.44
15	W11703060		Stop, Door (grey)   (Replaces: 12968202AP)				$ 15.46
16	WP12028505AP		Closure, Door (grey)   (Replaces: 12028505AP)			Immediately	$ 61.46

    View Diagram in Separate Window       Print Part List
