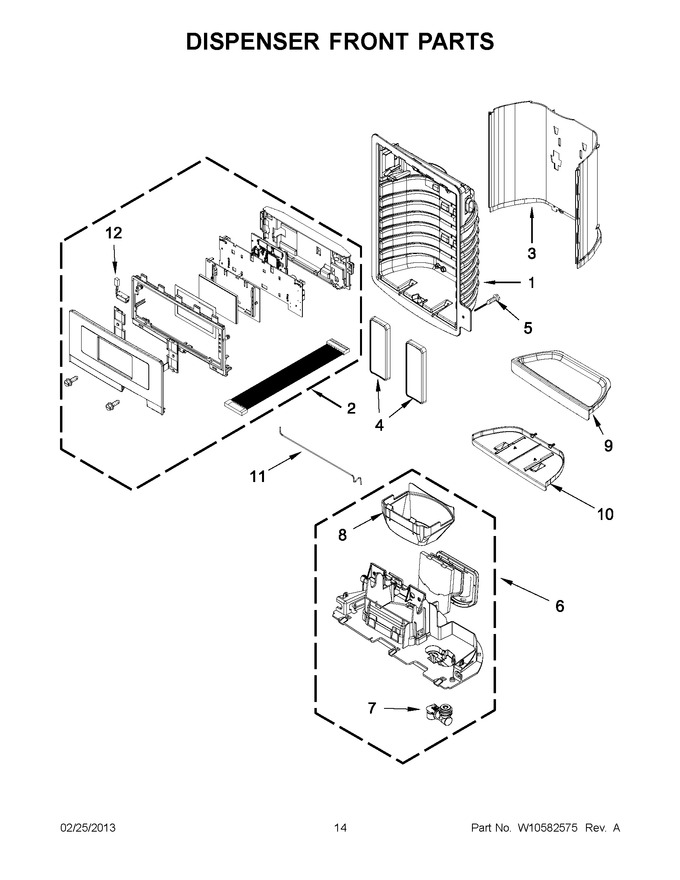

07 - Dispenser Front Parts


08 - Freezer Door Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10484304		Assembly, Ui   (Replaces: W10484304)				$ 311.18
3	W11045978		False, Wall, Dispenser (grey)   (Replaces: W10299897)				$ 90.33
4	WPW10353848		Assembly, Pad (grey)   (Replaces: W10353848)				$ 321.56
5	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 7.55
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 205.88
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	WPW10435760		Guide, Ice   (Replaces: W10339578)			Immediately	$ 23.94
9	W11192301		Tray-dispenser (grey)   (Replaces: W10299895)				$ 65.82
10	WPW10267863		Slide Tray, Dispenser (grey)   (Replaces: W10267863)				$ 73.22
11	WPW10511930		Waterline, Door   (Replaces: W10511930)				$ 121.94
12	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
