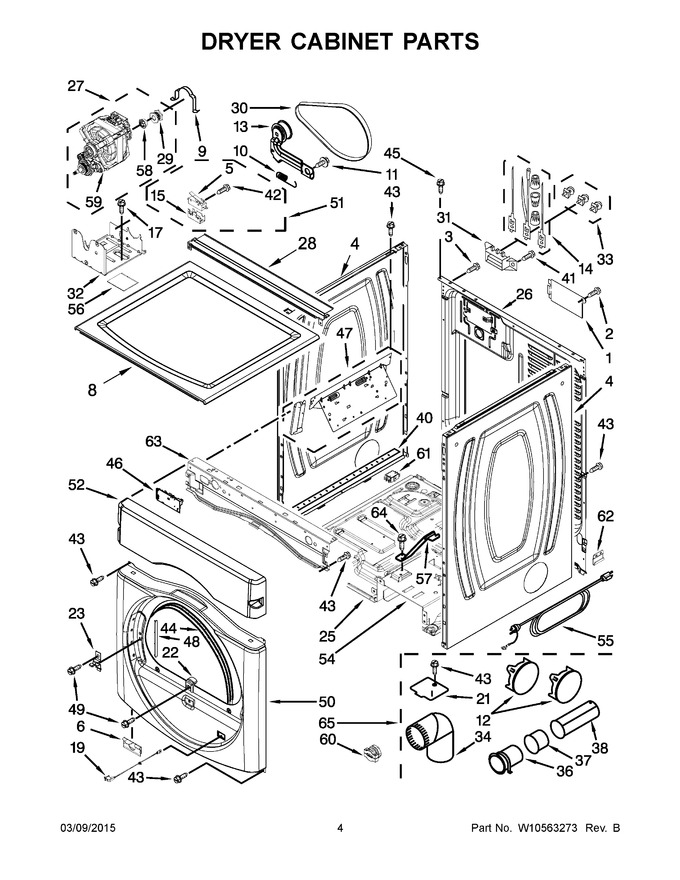

03 - Dryer Cabinet Parts


04 - Bulkhead And Blower Parts


05 - Dryer Heating Parts-electric


06 - Dryer Heating Parts-gas


07 - Burner Assembly


08 - Dryer Door Parts


09 - Washer Door Parts


10 - Washer Cabinet Parts


11 - Dispenser Parts


12 - Tub And Basket Parts


13 - Pump And Motor Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10601020		Cover, Terminal Block   (Replaces: W10096918)		Appelez-nous	-
2	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.82
3	W10850756		Screw   (Replaces: 8533974)				$ 7.76
4	W10542714		Panel, Side (white)				$ 333.89
5	W10410873		Assembly, Switch Actuator		Appelez-nous	-
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 21.11
8	WPW10336080		Lid & Bumper Assembly (white)   (Replaces: W10336080)				$ 316.18
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 76.65
13	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 90.07
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
15	8564011		Bracket, Switch				$ 18.17
17	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
19	W11192658		Assembly, Door Switch   (Replaces: W10459028)		Appelez-nous	-
21	WPW10354249		Plate, Cover   (Replaces: 8066115)				$ 8.96
22	8580015		Ramp, Door				$ 84.04
23	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 8.65
25	W11116960		Base, Cabinet Pd - Coin Drop   (Replaces: W10198309)		Appelez-nous	-
26	W10225180		Panel, Rear		Appelez-nous	-
27	W10416574		Assembly, Motor 50 Hz.   (Replaces: W10289662)				$ 332.50
28	W10198224		Bracket, Water Channel		Appelez-nous	-
29	W10167237		Pulley		Appelez-nous	-
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
33	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
34	WPW10416072		Elbow   (Replaces: 49026)				$ 26.82
36	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 91.38
37	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 78.95
38	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 88.80
40	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 37.82
41	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
42	3400934		Assembly, Screw And Insulator		Appelez-nous	-
43	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
46	WPW10166380		Board, Control   (Replaces: W10166380)				$ 156.89
47	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 171.13
48	8565043		Plug, Front Panel				$ 92.66
49	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
50	W11192661		Front Panel Assembly (white)   (Replaces: W10551281)		Appelez-nous	-
51	W11236387		Assembly, Switch   (Replaces: W10259136)		Appelez-nous	-
52	W11314861		Enclosure, Ccu Assembly   (Replaces: W10198379)		Appelez-nous	-
54	W10133261		Vault Switch, Bracket		Appelez-nous	-
55	WPW10476824		Cord, Power   (Replaces: W10476824)				$ 25.94
56	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 22.18
57	W10198376		Bracket, Burner		Appelez-nous	-
58	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
59	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 35.23
60	W11704629		Relief, Strain (power Cord)   (Replaces: 8316644)		Appelez-nous	-
61	279827		Switch, Centrifugal   (Replaces: 3388235)			Immediately	$ 191.95
62	W10198461		Bracket, Stack		Appelez-nous	-
63	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 180.73
64	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
65	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
25A	W11215531		Base, Cabinet Pr - Card Reader   (Replaces: W10225178)				$ 347.96
