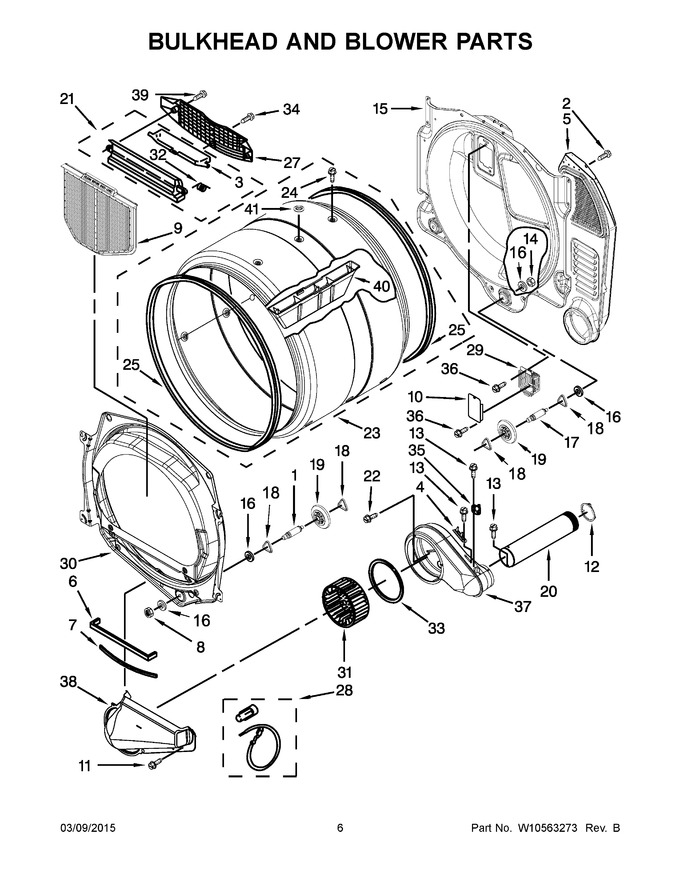

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 3 | W10181925 | Door, Lint Screen |
|
$ 18.06 | |||||
| 4 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 5 | WP3387911 | Assembly, Air Duct (electric Models) (Replaces: 697354) |
|
$ 311.72 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.97 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.97 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.16 | |||||
| 9 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 67.16 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 31.09 | |||||
| 11 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 12 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 81.62 | |||||
| 13 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 14 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 8.49 | ||||
| 15 | WPW10080170 | Bulkhead, Rear (Replaces: W10080170) |
|
$ 339.45 | |||||
| 16 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.03 | ||||
| 17 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 18 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 19 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 20 | W10225176 | Pipe, Exhaust (Replaces: W10225179) |
|
- | |||||
| 21 | W11197085 | Assembly, Outlet Housing (Replaces: W10181928) |
|
$ 42.85 | |||||
| 22 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 23 | W10549541 | Drum Complete Assembly |
|
- | |||||
| 24 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 25 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 27 | W11086603 | Grille, Outlet (Replaces: W10181926) |
|
Immediately | $ 35.14 | ||||
| 28 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 29 | W10465334 | Bracket, Drum Light |
|
- | |||||
| 30 | 8565061 | Bulkhead, Front |
|
$ 241.54 | |||||
| 31 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 120.33 | ||||
| 32 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.59 | |||||
| 33 | WP697770 | Seal, Plate Cover Mle20pnbgw2 & Mle20pdbgw2 (Replaces: 697770) |
|
Immediately | $ 7.88 | ||||
| 34 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.79 | ||||
| 35 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 36 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 37 | WP8544363 | Housing, Blower (electric Models) (Replaces: W10151271) |
|
$ 152.63 | |||||
| 38 | WPW10128606 | Assembly, Lint Duct (Replaces: W10286419) |
|
$ 207.12 | |||||
| 39 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 40 | W10852390 | Baffle, Drum (Replaces: W10153409) |
|
$ 139.34 | |||||
| 41 | W10665050 | Cap, Plug (Replaces: W10128544) |
|
$ 19.19 | |||||
| 33A | W10181918 | Seal, Plate Cover Mlg20pdbgw2 |
|
- | |||||
| 37A | W10888146 | Housing, Blower (gas Model) (Replaces: W10119255) |
|
$ 101.70 | |||||
| 5A | W11168650 | Assembly, Air Duct (gas Model) (Replaces: 3394346) |
|
$ 97.66 |
