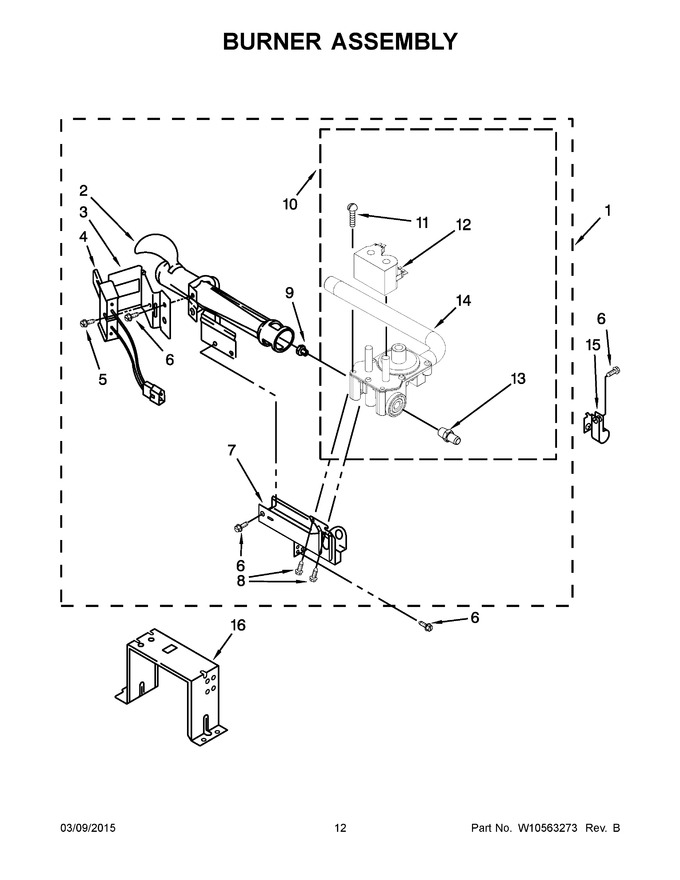

07 - Burner Assembly


08 - Dryer Door Parts


09 - Washer Door Parts


10 - Washer Cabinet Parts


11 - Dispenser Parts


12 - Tub And Basket Parts


13 - Pump And Motor Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096909		Assembly, Burner   (Replaces: W10469829)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 179.88
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 25.92
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: 3393909)				$ 7.50
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
7	3389871		Base, Burner				$ 79.29
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.19
9	234660		Orifice, Burner (type 1 (natural))				$ 4.91
10	W10096909		Assembly, Valve   (Replaces: W10304603)		Appelez-nous	-
12	W11818018		Coil, 50 Hz.   (Replaces: W10340251)		Appelez-nous	-
13	W10304608		Tap, Pressure		Appelez-nous	-
14	W10097610		Pipe, Gas Supply		Appelez-nous	-
15	3387561		Clamp, Pipe		Appelez-nous	-
16	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
9A	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 34.85
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W10571757		Conversion Kit, Lp   (Replaces: W10233219)				$ 36.00

    View Diagram in Separate Window       Print Part List
