SELECT A DIAGRAM
New Model Search:

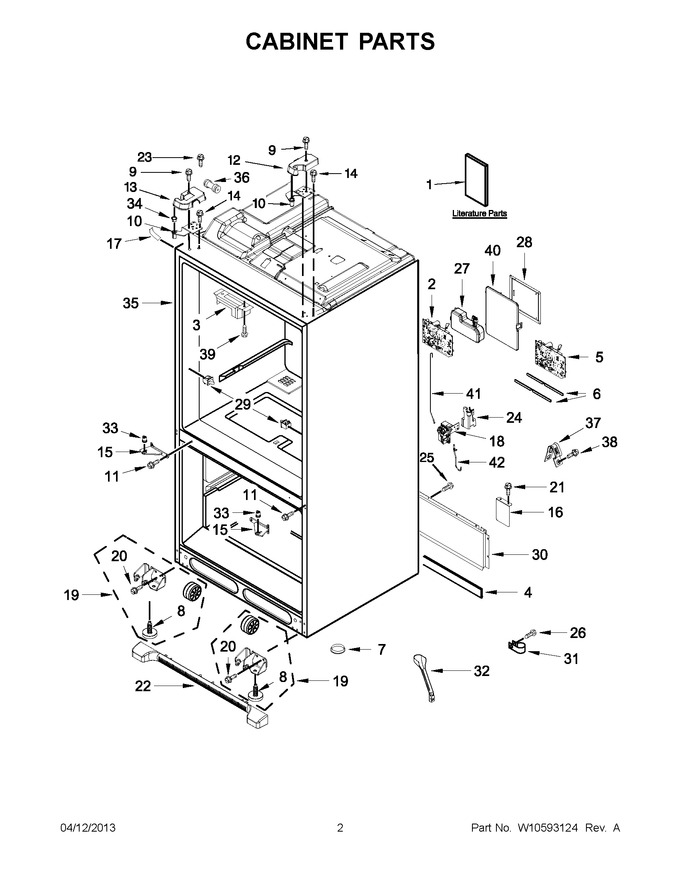

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10568022 | Tech Sheet |
|
- | |||||
| 1 | W10564040 | Guide, Energy |
|
- | |||||
| 1 | W10417002 | Owners Manual |
|
- | |||||
| 2 | WPW10453401 | Power Supply (Replaces: W10453401) |
|
Immediately | $ 247.11 | ||||
| 3 | W10562833 | Block, Pivot |
|
$ 43.96 | |||||
| 4 | W10505487 | Gasket |
|
$ 28.68 | |||||
| 5 | W10581605 | Board, Control |
|
$ 366.07 | |||||
| 6 | W10415341 | Gasket, Hv Box |
|
$ 37.00 | |||||
| 7 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11592405 | Hinge, Top (left Hand) (Replaces: W10248410) |
|
$ 32.31 | |||||
| 10 | W11592404 | Hinge, Top (right Hand) (Replaces: W10248409) |
|
$ 25.90 | |||||
| 11 | W11573362 | Screw, Hinge Screw (grey) (Replaces: W10403212) |
|
$ 14.72 | |||||
| 12 | WPW10407158 | Cover, Right Hand Hinge (grey) (Replaces: W10407158) |
|
$ 22.98 | |||||
| 13 | WPW10471618 | Cover, Left Hand Hinge (grey) (Replaces: W10471618) |
|
$ 25.27 | |||||
| 14 | WPW10308751 | Screw, Black (Replaces: W10308751) |
|
$ 8.84 | |||||
| 15 | W10878115 | Hinge, Center Left Hand (grey) (Replaces: W10248706) |
|
Immediately | $ 76.85 | ||||
| 15 | W11240748 | Hinge, Center Right Hand (grey) (Replaces: W10248703) |
|
$ 78.71 | |||||
| 16 | W10336736 | Cover, Roller |
|
- | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | WPW10455331 | Valve, Smart (Replaces: W10455331) |
|
$ 310.93 | |||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 22 | WPW10637671 | Grille, Toe (grey) (Replaces: W10485164) |
|
Immediately | $ 143.46 | ||||
| 23 | W11214483 | Screw, Ground (Replaces: 12992601) |
|
Immediately | $ 14.72 | ||||
| 24 | W10455330 | Cover, Valve |
|
- | |||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 26 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 27 | WPW10306786 | Supply, Power Led (Replaces: W10306786) |
|
Immediately | $ 319.36 | ||||
| 28 | WPW10485658 | Cover, Control Box (Replaces: W10485658) |
|
$ 83.03 | |||||
| 29 | W11289496 | Switch, Light (Replaces: W10565413) |
|
Immediately | $ 38.71 | ||||
| 30 | W11482027 | Cover, Unit (Replaces: W10523222) |
|
Immediately | $ 121.36 | ||||
| 31 | W11456069 | Clamp-tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 32 | W10491298 | Tube, Drain |
|
- | |||||
| 33 | WPW10505294 | Coupler, Door (Replaces: W10505294) |
|
$ 11.90 | |||||
| 34 | W10212137 | Retainer, Door |
|
$ 13.69 | |||||
| 35 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 36 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 36.99 | ||||
| 37 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 38 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 39 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 40 | W10277839 | Lid, Hv |
|
$ 73.91 | |||||
| 41 | WPW10476835 | Tube, Water (Replaces: W10476835) |
|
$ 137.81 | |||||
| 42 | W10455336 | Waterline, Customer Connection |
|
$ 113.89 |
