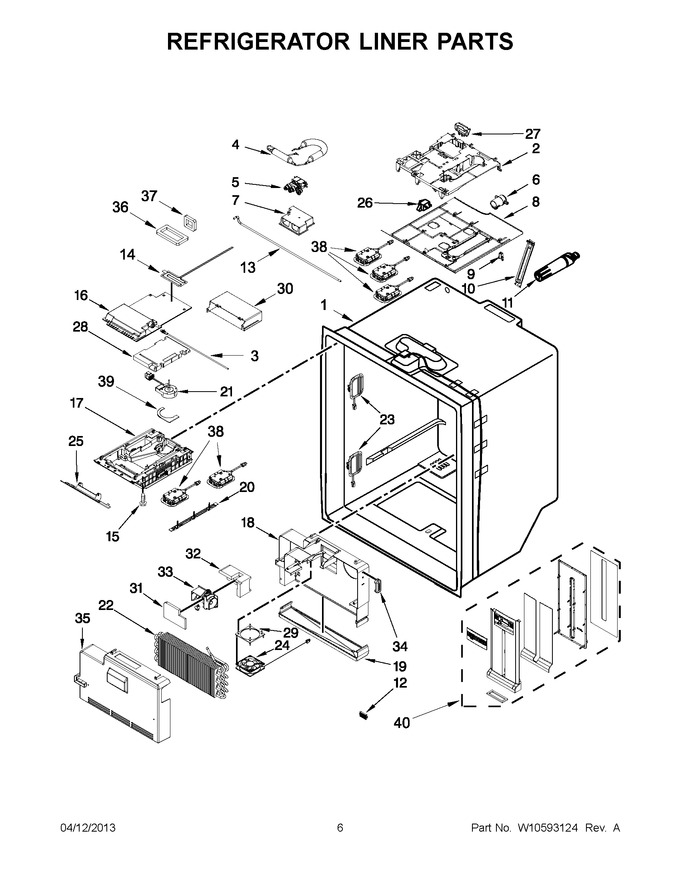

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10842950 | Housing, Water System (Replaces: W10562486) |
|
$ 45.75 | |||||
| 3 | W11686799 | Tube, Fill (Replaces: W10482107) |
|
Immediately | $ 106.42 | ||||
| 4 | W11168758 | Reservoir, Water (also Order Wire Tie Part 8567668 Qty.5) (Replaces: W10394084) |
|
Immediately | $ 159.27 | ||||
| 5 | WPW10341329 | Valve, Dual Water (Replaces: W10341329) |
|
Immediately | $ 103.72 | ||||
| 6 | W11194438 | Housing, Water Filter (Replaces: W10238156) |
|
Immediately | $ 198.11 | ||||
| 7 | W10811115 | Enclosure, Valve (Replaces: W10279854) |
|
$ 97.07 | |||||
| 8 | W10754145 | Cover, Water (Replaces: W10561174) |
|
Immediately | $ 85.01 | ||||
| 9 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 108.76 | |||||
| 10 | W10562514 | Door, Filter Access |
|
- | |||||
| 11 | W10238154 | Filter, Water |
|
- | |||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 13 | W10515793 | Waterline, Valve To Hinge |
|
- | |||||
| 14 | WPW10554299 | Heater, Fill Tube (Replaces: W10554299) |
|
Immediately | $ 90.95 | ||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 16 | WPW10598013 | Cover, Icebox (Replaces: W10331462) |
|
Immediately | $ 142.07 | ||||
| 17 | W10564049 | Foamed, Icebox Assembly |
|
$ 254.90 | |||||
| 18 | WPW10469927 | Enclosure, Evaporator (Replaces: W10469927) |
|
$ 233.89 | |||||
| 19 | W11457241 | Pan, Drain (Replaces: W10537710) |
|
Immediately | $ 130.38 | ||||
| 20 | W10561168 | Trim, Icebox |
|
$ 25.67 | |||||
| 21 | W10846539 | Assembly, Blower (Replaces: W10460280) |
|
Immediately | $ 295.57 | ||||
| 22 | W11492867 | Assembly, Evaporator (Replaces: W10503454) |
|
Immediately | $ 270.59 | ||||
| 23 | W11683242 | Assembly, Led Light Module (Replaces: W10559034) |
|
Immediately | $ 300.56 | ||||
| 24 | W10633627 | Motor, Fan (also Order Fan Support No.w10389152) (Replaces: W10395278) |
|
Immediately | $ 183.08 | ||||
| 25 | W11741469 | Assembly, Fascia (Replaces: W10577411) |
|
$ 152.75 | |||||
| 26 | W11384469 | Switch, Light (Replaces: C3680314) |
|
Immediately | $ 35.18 | ||||
| 27 | W10434481 | Bracket, Reservoir |
|
$ 49.86 | |||||
| 28 | WPW10280983 | Insulation (Replaces: W10280983) |
|
Immediately | $ 84.83 | ||||
| 29 | WPW10389152 | Support, Fan (Replaces: W10389152) |
|
Immediately | $ 22.73 | ||||
| 30 | W10648043 | Adapter, Icebox (Replaces: W10564048) |
|
$ 200.16 | |||||
| 31 | W10389154 | Retainer, Damper |
|
$ 24.29 | |||||
| 32 | W10389149 | Support, Damper |
|
$ 20.11 | |||||
| 33 | WPW10248595 | Damper, Control (Replaces: W10248595) |
|
Immediately | $ 183.63 | ||||
| 34 | W11190819 | Cover, Thermistor (Replaces: W10561160) |
|
$ 21.05 | |||||
| 35 | W11211387 | Cover, Evaporator (Replaces: W10564044) |
|
$ 225.84 | |||||
| 36 | WPW10280988 | Gasket, Rear Supply (Replaces: W10280988) |
|
Immediately | $ 7.35 | ||||
| 37 | WPW10320706 | Gasket, Rear Return (Replaces: W10320706) |
|
Immediately | $ 25.07 | ||||
| 38 | W11683242 | Assembly, Led Light Module (Replaces: W10559034) |
|
Immediately | $ 300.56 | ||||
| 39 | WPW10392172 | Gasket, Fan (Replaces: W10392172) |
|
Immediately | $ 24.99 | ||||
| 40 | W10846158 | Assembly, Air Tower (Replaces: W10518049) |
|
$ 214.60 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10277801 | Harness, Rc Lights |
|
$ 75.19 | |||||
| NI | W10859326 | Harness, Dual Valve (Replaces: W10570599) |
|
$ 109.07 | |||||
| NI | WPW10277799 | Harness, Wire Evaporator Includes Thermistor (Replaces: W10277799) |
|
Immediately | $ 63.13 |
