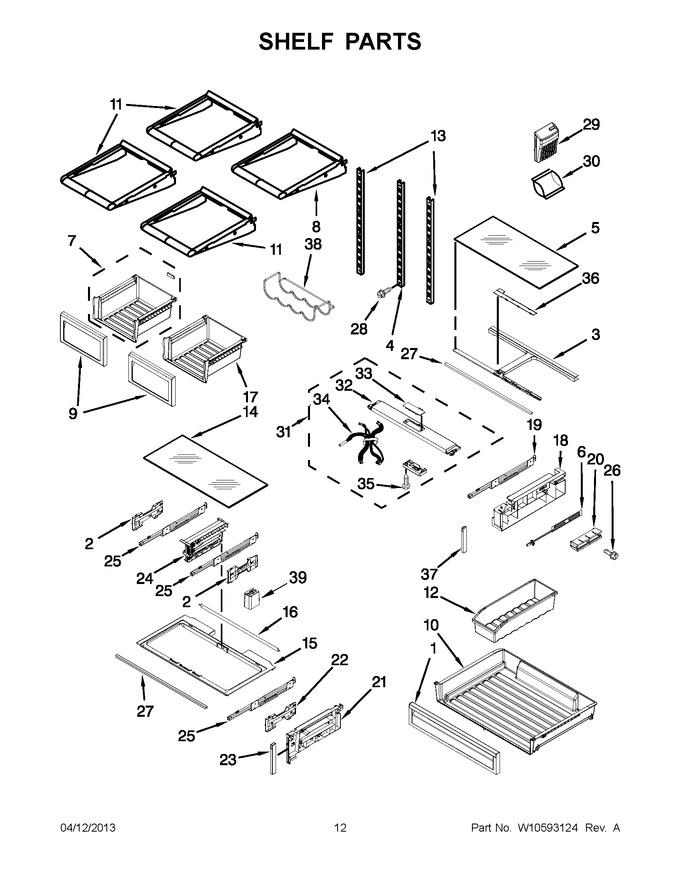

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Motor And Ice Container Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10564306		Front, Pantry				$ 65.04
2	W10562471		Plate, Slide Center				$ 26.97
3	W10564564		Support, Pantry		Appelez-nous	-
4	W10467461		Ladder, Center			Immediately	$ 52.31
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 225.08
6	W10342618		Heater, Pantry				$ 88.06
7	W11227365		Pan, Crisper   (Replaces: W10564301)				$ 154.40
8	W10564629		Shelf, Fixed		Appelez-nous	-
9	WPW10564297		Front, Crisper   (Replaces: W10564297)				$ 163.29
10	W10562475		Pan, Pantry				$ 66.14
11	WPW10564571		Shelf, Full   (Replaces: W10564571)				$ 461.58
12	W10591235		Divider, Pantry		Appelez-nous	-
13	W11819951		Ladder, Side   (Replaces: W10467460)		Appelez-nous	-
14	WPW10568000		Glass, Crisper   (Replaces: W10568000)				$ 238.50
15	W10561180		Cover, Crisper				$ 166.78
16	WPW10248967		Support, Rear   (Replaces: W10248967)				$ 79.09
17	W10859100		Pan, Crisper   (Replaces: W10562550)				$ 202.45
18	W10562476		Plate, Side Pantry (left Hand)		Appelez-nous	-
18	W10562478		Plate, Side Pantry (right Hand)		Appelez-nous	-
19	W10248531		Slide, Pantry (left Hand)				$ 133.89
19	W10248532		Slide, Pantry (right Hand)				$ 213.18
20	W10432697		Insulation, Sideplate				$ 14.63
21	W11329579		Plate, Crisper (right Hand)   (Replaces: W10562803)				$ 92.87
21	W11329364		Plate, Crisper (left Hand)   (Replaces: W10562800)				$ 92.32
22	W10562802		Plate, Side				$ 145.06
23	W10562814		Plate, Crisper Front		Appelez-nous	-
24	W10562425		Track, Center				$ 70.59
25	W11233912		Slide, Crisper   (Replaces: W10248819)				$ 284.43
26	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 134.05
28	W10423561		Screw		Appelez-nous	-
29	W10564202		Holder, Filter				$ 22.86
30	W10346771		Filter, Produce Preserver		Appelez-nous	-
31	W11048824		Cover, Front (incls. Led Assembly)   (Replaces: W10564314)				$ 347.87
32	WPW10562532		Cover, Top   (Replaces: W10562532)				$ 101.78
33	W10564559		Assembly, Ui				$ 448.23
34	W10405524		Harness, Wire (incls. Thermistor)				$ 119.45
35	W11311945		Screw   (Replaces: 12990204)				$ 14.72
36	W10564570		Support, Pantry Cover		Appelez-nous	-
37	W10562479		Plate, Pantry Front				$ 14.51
38	W10413979		Rack, Wine				$ 152.79
39	W10562473		Support, Crisper		Appelez-nous	-
