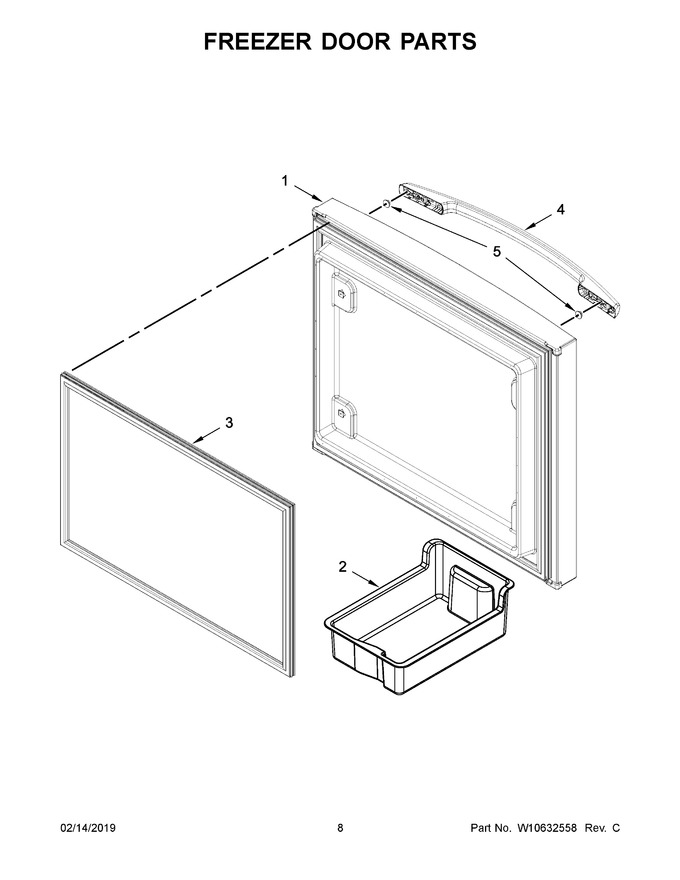

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10353182 | Door, Freezer (includes Illustration 3) (white) (Replaces: W10353182) |
|
$ 609.55 | |||||
| 2 | WPW10378263 | Pan, Ice (Replaces: W10378263) |
|
$ 55.56 | |||||
| 3 | W10460611 | Gasket, Door (beige) (Replaces: W10465758) |
|
Immediately | $ 304.19 | ||||
| 4 | W10360538 | Assembly, Handle (white) |
|
$ 64.13 | |||||
| 5 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 1A | LW10413530 | Door, Freezer (includes Illustration 3) (black) (Replaces: W10413530) |
|
$ 496.53 | |||||
| 1B | LW10413531 | Door, Freezer (includes Illustration 3) (stainless) (Replaces: W10413531) |
|
Immediately | $ 854.66 | ||||
| 3A | W11625017 | Gasket, Door (black) (Replaces: W10465761) |
|
$ 339.69 | |||||
| 3B | W10836785 | Gasket, Door (grey) (Replaces: W10465762) |
|
$ 278.29 | |||||
| 4A | W10409179 | Assembly, Handle (black) |
|
$ 48.50 | |||||
| 4B | W10409180 | Assembly, Handle (stainless) |
|
$ 52.48 |
