SELECT A DIAGRAM
New Model Search:

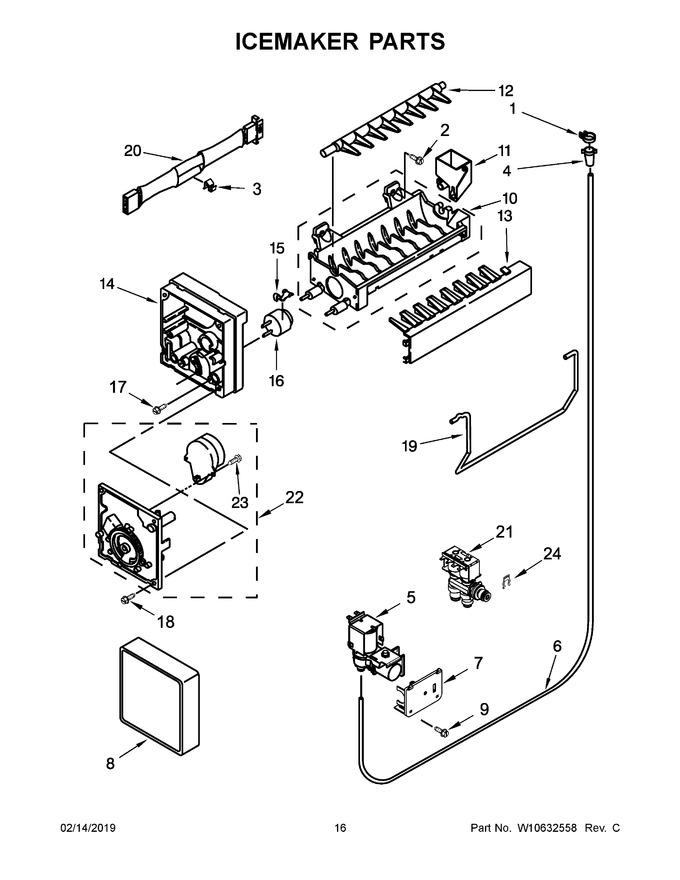

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 65.90 | |||||
| 2 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 3 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 8.23 | |||||
| 5 | WPW10238100 | Valve, Inlet (Replaces: W10238100) |
|
Immediately | $ 210.55 | ||||
| 6 | W11680400 | Tube, Water (Replaces: W10837812) |
|
Immediately | $ 87.53 | ||||
| 7 | W10847867 | Bracket, Water Valve (Replaces: W10237915) |
|
$ 80.75 | |||||
| 8 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 10 | WPW10190929 | Assembly, Mold And Heater (Replaces: W10122527) |
|
$ 233.15 | |||||
| 11 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 22.65 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 13 | WPW10122563 | Stripper, Ice (Replaces: W10122563) |
|
$ 99.42 | |||||
| 14 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 109.80 | |||||
| 15 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 16 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 114.64 | |||||
| 17 | W10001280 | Screw |
|
- | |||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 19 | WPW10474785 | Arm, Shut Off (Replaces: W10474785) |
|
Immediately | $ 58.29 | ||||
| 20 | W11643622 | Assembly, Ice Maker Wire (Replaces: W10309400) |
|
$ 28.48 | |||||
| 21 | WPW10238100 | Valve, Inlet (Replaces: W10498992) |
|
Immediately | $ 210.55 | ||||
| 22 | 8201515 | Assembly, Module And Motor (Replaces: W10223929) |
|
Immediately | $ 141.64 | ||||
| 23 | 489136 | Screw |
|
$ 10.80 | |||||
| 24 | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 14.90 | |||||
| 100 | 4317943 | Assembly, Icemaker (Replaces: W10632400) |
|
Immediately | $ 183.45 |
