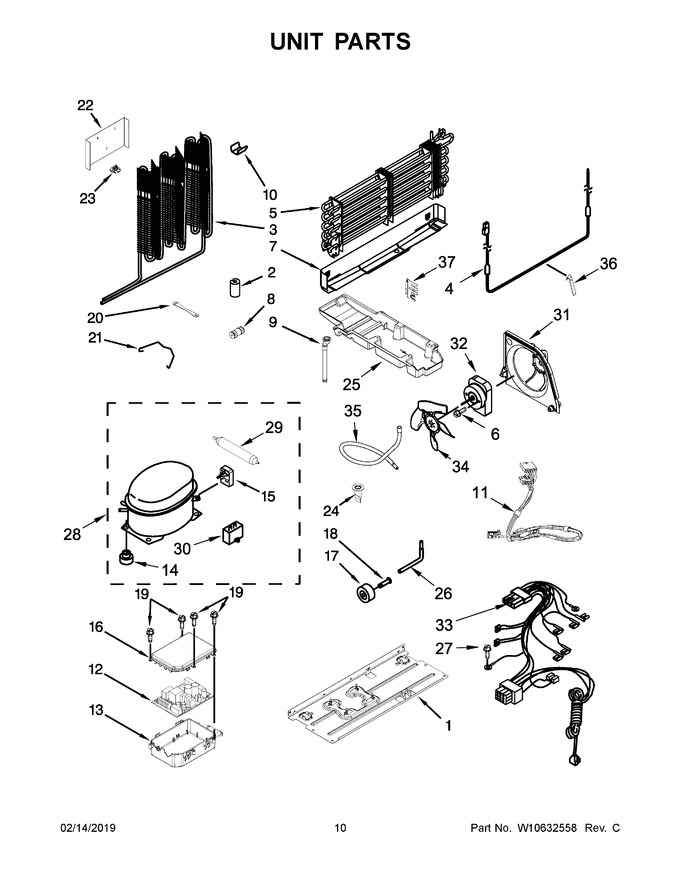

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Baseplate |
|
$ 164.30 | |||||
| 2 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 3 | WPW10342567 | Condenser (Replaces: W10342567) |
|
$ 278.20 | |||||
| 4 | WPW10436849 | Heater, Defrost (Replaces: W10436849) |
|
Immediately | $ 134.14 | ||||
| 5 | WPW10321158 | Assembly, Evaporator (Replaces: W10321158) |
|
Immediately | $ 293.66 | ||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 101.34 | |||||
| 8 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 9 | W11284510 | Tube, Drain (Replaces: W11115756) |
|
$ 70.53 | |||||
| 10 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 11 | WPW10424230 | Assembly, Low Voltage Wire (Replaces: W10424230) |
|
Immediately | $ 123.63 | ||||
| 12 | W11035836 | Control, Electronic (Replaces: W10892333) |
|
Immediately | $ 261.12 | ||||
| 13 | 2323186 | Box, Control |
|
$ 107.48 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 15 | WPW10194431 | Device, Combination Start (start Relay And Overload) (Replaces: W10194431) |
|
Immediately | $ 86.85 | ||||
| 16 | W10313215 | Cover, Electronic Control |
|
$ 77.99 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 21 | W10204187 | Strap, Bale |
|
- | |||||
| 22 | W10349514 | Cover, Condenser Bottom |
|
$ 82.40 | |||||
| 23 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 24 | W11190084 | Valve, Drain (Replaces: W10519112) |
|
Immediately | $ 65.56 | ||||
| 25 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 151.95 | |||||
| 26 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 108.61 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 28 | WPW10466675 | Compressor (also Order 876765 Tube Kit) (Replaces: W10391109) |
|
$ 834.53 | |||||
| 29 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 57.13 | ||||
| 30 | W11179313 | Capacitor (Replaces: W10590088) |
|
$ 122.39 | |||||
| 31 | WP2315541 | Bracket, Condenser Fan (Replaces: 2315541) |
|
Immediately | $ 87.99 | ||||
| 32 | WP2188874 | Motor, Condenser (Replaces: W10530280) |
|
Immediately | $ 113.96 | ||||
| 33 | W10633276 | Assembly, Unit Wire |
|
$ 224.62 | |||||
| 34 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 101.49 | ||||
| 35 | W10466682 | Tube, Suction |
|
$ 44.33 | |||||
| 36 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 20.12 | |||||
| 37 | W10314197 | Bracket, Evaporator |
|
$ 23.44 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | N/P | Refrigerant Charge 4.25 Oz (r-134a) |
|
- | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 95.92 | ||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 137.25 |
