SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Motor And Ice Container Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)

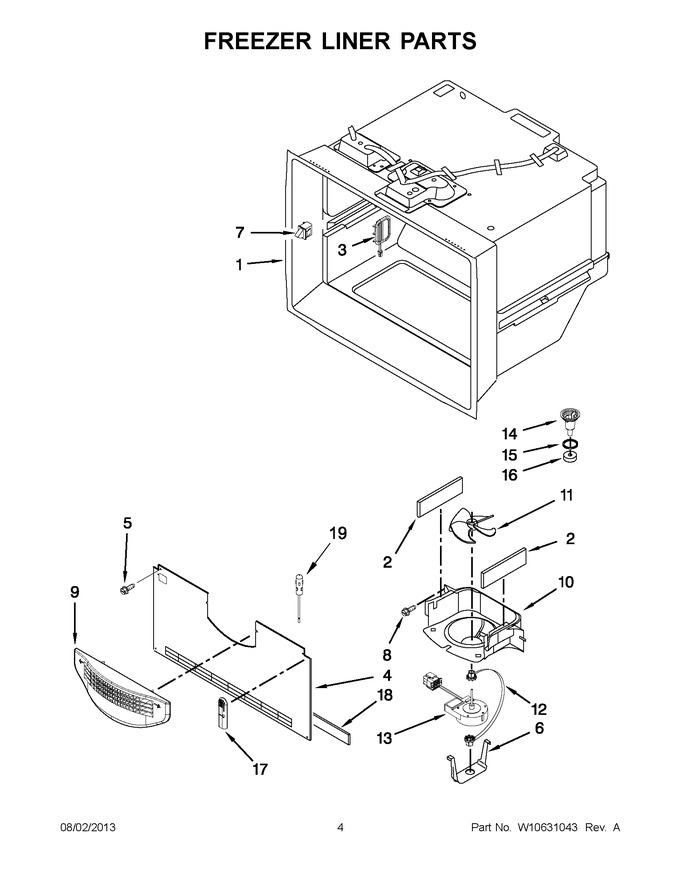

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10856123		Gasket, Foam   (Replaces: A3189392)			Immediately	$ 7.68
3	W11683241		Assembly, Led Light Module   (Replaces: W10412708)			Immediately	$ 259.02
4	W11690163		Cover, Evaporator   (Replaces: W10513424)				$ 208.65
5	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
6	W11712696		Clip, Fan Motor   (Replaces: 12956601)			Immediately	$ 11.66
7	W11384469		Switch, Light   (Replaces: C3680310V)			Immediately	$ 37.23
8	WP98165		Screw   (Replaces: 12990504)				$ 8.00
9	W10871842		Grille, Air (freezer)   (Replaces: W10496613)				$ 14.84
10	WPW10363507		Shroud, Evaporator Fan   (Replaces: W10363507)				$ 82.25
11	WP67006337		Blade, Fan   (Replaces: 12986101)			Immediately	$ 90.45
12	W11676465		Grommet, Fan Motor   (Replaces: 12951101)			Immediately	$ 14.82
13	W11452196		Motor, Evaporator (includes Harness, Thermistor, And Defrost Thermostat)   (Replaces: W10514110)			Immediately	$ 216.46
14	W10503218		Funnel, Drain			Immediately	$ 17.75
15	WPM0500703		Seal   (Replaces: M0500703)				$ 10.92
16	WPB8381501		Gasket, Drain   (Replaces: B8381501)				$ 7.41
17	W11661208		Cover, Thermistor   (Replaces: W10405166)				$ 22.17
18	W10668165		Gasket, Dual Evaporator   (Replaces: W10531268)		Appelez-nous	-
19	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 32.00

    View Diagram in Separate Window       Print Part List
