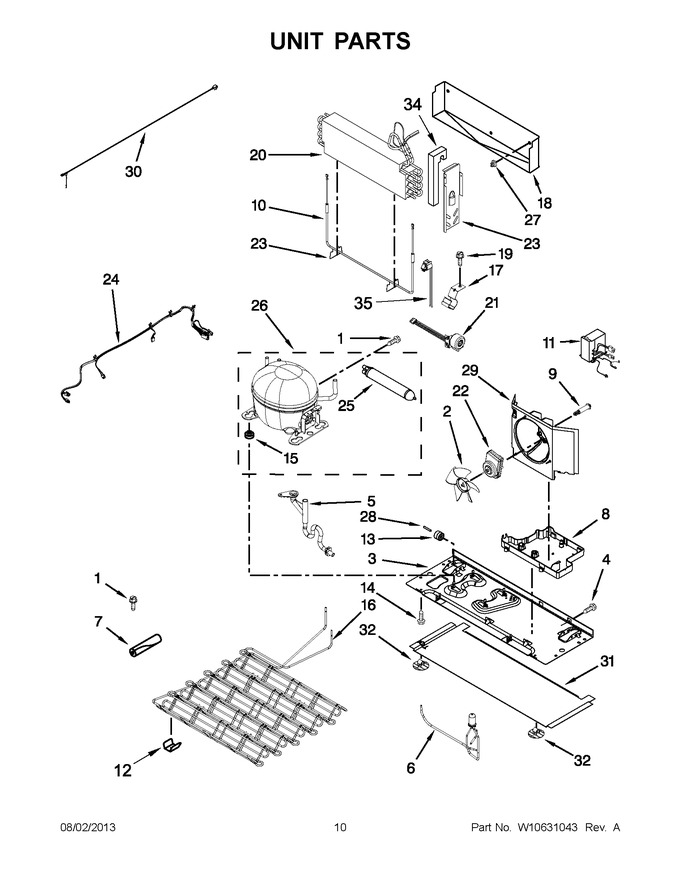

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | W10248414 | Basepan |
|
$ 93.67 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | W11745092 | Extension, Drain (Replaces: W10547687) |
|
$ 81.62 | |||||
| 6 | W11580434 | Assembly, Valve Body (Replaces: W10391081) |
|
Immediately | $ 107.74 | ||||
| 7 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 8 | W10703218 | Tray, Evaporator (Replaces: W10238584) |
|
$ 202.29 | |||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 10 | WP12729128 | Heater, Defrost (Replaces: 12729128) |
|
Immediately | $ 97.71 | ||||
| 11 | W10893917 | Assembly, Inverter Box (Replaces: W10186719) |
|
Immediately | $ 470.79 | ||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
Immediately | $ 7.55 | ||||
| 16 | W11760073 | Condenser Assembly (Replaces: W10627646) |
|
$ 168.80 | |||||
| 17 | W10391376 | Bracket, Valve |
|
$ 35.03 | |||||
| 18 | W11408656 | Tray, Drip (Replaces: W10342573) |
|
$ 45.58 | |||||
| 19 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 20 | WPW10608485 | Evaporator (Replaces: W10248589) |
|
Immediately | $ 372.67 | ||||
| 21 | WPW10364560 | Coil, 3 Way Valve (Replaces: W10364560) |
|
$ 225.88 | |||||
| 22 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 23 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 24 | W11189618 | Harness, Unit (Replaces: W10442270) |
|
$ 140.89 | |||||
| 25 | WPW10143759 | Drier (Replaces: W10286069) |
|
Immediately | $ 30.78 | ||||
| 26 | W10276644 | Compressor (Replaces: W10168473) |
|
Immediately | $ 761.58 | ||||
| 27 | W11544659 | Screw (Replaces: W10142294) |
|
$ 14.35 | |||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 29 | WPW10406719 | Shroud (Replaces: W10406719) |
|
$ 82.24 | |||||
| 30 | WPW10494227 | Cord, Power (Replaces: W10494227) |
|
$ 84.70 | |||||
| 31 | W10278140 | Unit Cover, Bottom |
|
$ 94.05 | |||||
| 32 | W10296661 | Clip, Bottom Cover |
|
$ 17.78 | |||||
| 34 | W10491355 | Gasket, Airdam |
|
$ 22.28 | |||||
| 35 | W11452196 | Motor, Evaporator (includes Harness, Thermistor, And Defrost Thermostat) (Replaces: W10514110) |
|
Immediately | $ 227.28 | ||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.50 Oz. (r-134a) |
|
- |
