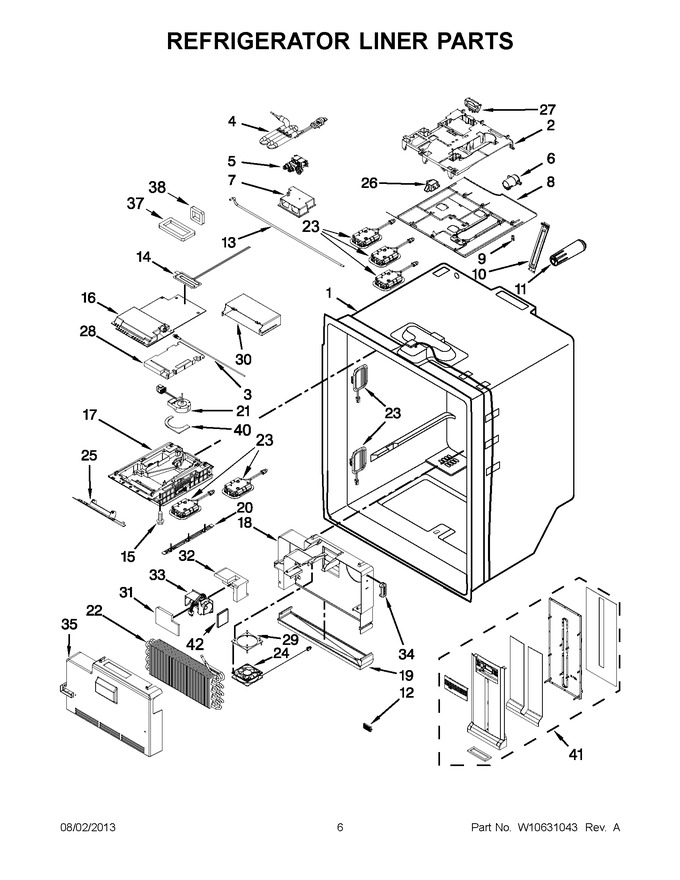

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10842950 | Housing, Water System (Replaces: W10562486) |
|
$ 50.83 | |||||
| 3 | W11686799 | Tube, Fill (Replaces: W10482107) |
|
Immediately | $ 118.24 | ||||
| 4 | W11168758 | Reservoir, Water (also Order Wire Tie Part 8567668 Qty.5) (Replaces: W10394084) |
|
Immediately | $ 115.54 | ||||
| 5 | WPW10341329 | Valve, Dual Water (Replaces: W10341329) |
|
Immediately | $ 115.24 | ||||
| 6 | W11194438 | Housing, Water Filter (Replaces: W10238156) |
|
Immediately | $ 220.12 | ||||
| 7 | W10811115 | Enclosure, Valve (Replaces: W10279854) |
|
$ 107.85 | |||||
| 8 | W10488685 | Cover, Water |
|
$ 113.41 | |||||
| 9 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 120.84 | |||||
| 10 | WPW10277949 | Door, Filter Access (Replaces: W10277949) |
|
$ 100.91 | |||||
| 11 | W10238154 | Filter, Water |
|
- | |||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W11686800 | Waterline, Valve To Hinge (Replaces: W10341367) |
|
$ 88.45 | |||||
| 14 | WPW10554299 | Heater, Fill Tube (Replaces: W10554299) |
|
Immediately | $ 101.05 | ||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | WPW10598013 | Cover, Icebox (Replaces: W10598013) |
|
Immediately | $ 157.86 | ||||
| 17 | W10492817 | Assembly, Icebox (foamed) |
|
$ 201.80 | |||||
| 18 | WPW10469927 | Enclosure, Evaporator (Replaces: W10469927) |
|
$ 259.88 | |||||
| 19 | W11457241 | Pan, Drain (Replaces: W10525237) |
|
Immediately | $ 78.60 | ||||
| 20 | W10505516 | Trim, Icebox |
|
$ 35.20 | |||||
| 21 | W10846539 | Assembly, Blower (Replaces: W10460280) |
|
Immediately | $ 181.73 | ||||
| 22 | W11492867 | Evaporator Assembly (Replaces: W10525236) |
|
Immediately | $ 266.93 | ||||
| 23 | W11683241 | Assembly, Led Light Module (Replaces: W10412708) |
|
Immediately | $ 271.97 | ||||
| 24 | W10633627 | Motor, Fan (also Order Fan Support No.w10389152) (Replaces: W10395278) |
|
Immediately | $ 169.62 | ||||
| 25 | W11637688 | Fascia Assembly (Replaces: W10553630) |
|
Immediately | $ 113.56 | ||||
| 26 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 39.09 | ||||
| 27 | W10434481 | Bracket, Reservoir |
|
$ 49.86 | |||||
| 28 | WPW10280983 | Insulation (Replaces: W10280983) |
|
Immediately | $ 94.25 | ||||
| 29 | WPW10389152 | Support, Fan (Replaces: W10389152) |
|
Immediately | $ 22.39 | ||||
| 30 | W10612142 | Adapter, Icebox (Replaces: W10519547) |
|
Immediately | $ 220.27 | ||||
| 31 | W10389154 | Retainer, Damper |
|
$ 26.99 | |||||
| 32 | W10389149 | Support, Damper |
|
$ 20.11 | |||||
| 33 | WPW10248595 | Damper, Control (Replaces: W10248595) |
|
Immediately | $ 132.64 | ||||
| 34 | W11190819 | Cover, Thermistor (Replaces: W10561160) |
|
$ 23.39 | |||||
| 35 | WPW10501260 | Cover, Evaporator (Replaces: W10501260) |
|
$ 248.36 | |||||
| 37 | WPW10280988 | Gasket, Rear Supply (Replaces: W10280988) |
|
Immediately | $ 8.17 | ||||
| 38 | WPW10320706 | Gasket, Rear Return (Replaces: W10320706) |
|
Immediately | $ 27.86 | ||||
| 40 | WPW10392172 | Gasket, Fan (Replaces: W10392172) |
|
Immediately | $ 27.77 | ||||
| 41 | W10518048 | Air Tower Assembly |
|
- | |||||
| 42 | W10470981 | Gasket, Damper |
|
$ 26.47 | |||||
| NI | N/P | Following Parts Not .illustrated |
|
- | |||||
| NI | W10277801 | Harness, Rc Lights |
|
$ 83.54 | |||||
| NI | W10859326 | Harness, Dual Valve (Replaces: W10570599) |
|
$ 121.19 | |||||
| NI | WPW10277799 | Harness, Wire Evaporator Includes Thermistor (Replaces: W10277799) |
|
Immediately | $ 64.57 |
