SELECT A DIAGRAM

01 - Cover Sheet

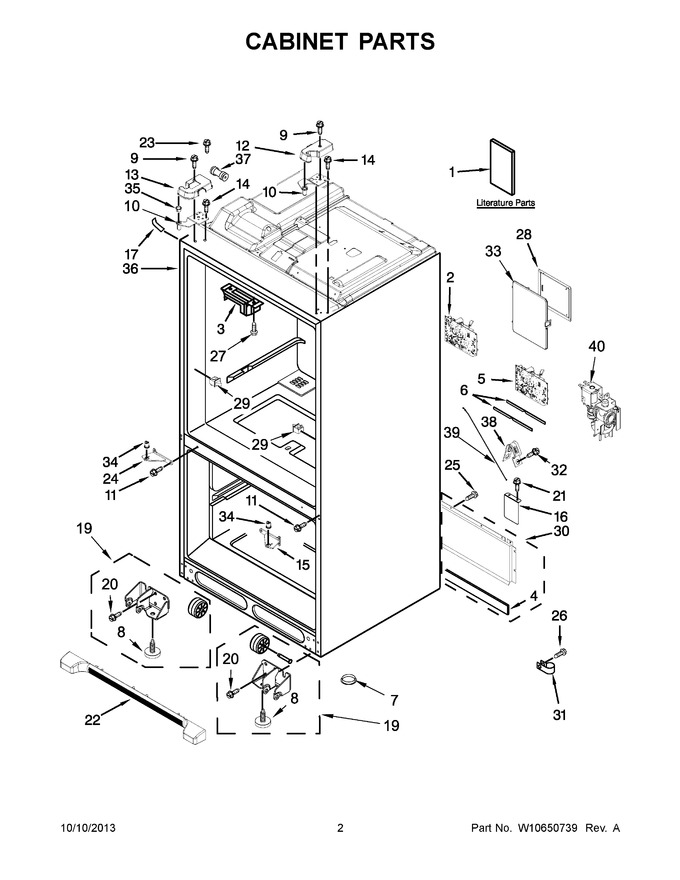

02 - Cabinet Parts


03 - Freezer Liner Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Motor And Ice Container Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10558103		Use & Care Guide		Appelez-nous	-
1	W10617369		Tech Sheet		Appelez-nous	-
1	W10566389		Energy Guide		Appelez-nous	-
2	WPW10453401		Power Supply   (Replaces: W10453401)			Immediately	$ 247.11
3	WPW10344432		Block, Pivot   (Replaces: W10344432)			Immediately	$ 19.16
4	W10505487		Gasket				$ 28.68
5	WPW10589838		Control, Electronic   (Replaces: W10589838)			Immediately	$ 454.82
6	W10415341		Gasket, Hv Box				$ 37.00
7	A3076901		Plug, Button				$ 5.70
8	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592405		Top Hinge (left Hand)   (Replaces: W10248410)				$ 32.31
10	W11592404		Top Hinge (right Hand)   (Replaces: W10248409)				$ 25.90
11	W10403211		Screw (black)				$ 78.33
11	W11573362		Screw (grey)   (Replaces: W10403212)				$ 14.72
11	W10403208		Screw (white)				$ 14.04
12	WPW10407158		Cover, Right Hinge (grey)   (Replaces: W10407158)				$ 22.98
12	W10248562		Cover, Right Hinge (white)		Appelez-nous	-
12	W10407157		Cover, Right Hinge (black)				$ 23.06
13	W10471617		Cover, Left Hinge (black)				$ 24.13
13	W10471615		Cover, Left Hinge (white)				$ 20.70
13	WPW10471618		Cover, Left Hinge (grey)   (Replaces: W10471618)				$ 25.27
14	WPW10308751		Screw (black)   (Replaces: W10308751)				$ 8.84
15	W11240748		Hinge, Center (rt) (grey)   (Replaces: W10248703)				$ 78.71
15	W10407275		Hinge, Center (rt) (black)   (Replaces: W10248702)				$ 79.94
15	W10248433		Hinge, Center (rt) (white)				$ 85.33
16	W10336736		Cover, Roller		Appelez-nous	-
17	WP12587703AP		Cover, Roller (grey)   (Replaces: 12587703AP)				$ 8.07
17	67003485		Cover, Roller (black)   (Replaces: 12587703B)			Immediately	$ 22.14
17	12587703W		Cover, Roller (white)				$ 22.90
19	W11820444		Roller Assembly (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
19	W11820445		Roller Assembly (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 8.15
21	WP33001882		Screw   (Replaces: 12990701)				$ 83.71
22	WPW10637671		Grille, Toe (grey)   (Replaces: W10637671)			Immediately	$ 143.46
22	WPW10637669		Grille, Toe (black)   (Replaces: W10637669)				$ 134.32
22	WPW10637668		Grille, Toe (white)   (Replaces: W10637668)				$ 138.98
23	W11214483		Screw   (Replaces: 12992601)				$ 14.72
24	W10878115		Hinge, Center (lt) (grey)   (Replaces: W10248706)				$ 76.85
24	W10248434		Hinge, Center (lt) (white)				$ 84.85
24	W10407279		Hinge, Center (lt) (black)   (Replaces: W10248705)				$ 82.59
25	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
26	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
27	W10854958		Screw   (Replaces: 12990302)				$ 7.90
28	WPW10485658		Cover, Control Box   (Replaces: W10485658)				$ 83.03
29	W11396033		Switch, Light   (Replaces: 12466105)			Immediately	$ 37.30
30	W11482027		Cover, Unit   (Replaces: W10577369)			Immediately	$ 121.36
31	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
32	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
33	W10277839		Lid, Hv				$ 73.91
34	WPW10505294		Coupler, Door   (Replaces: W10505294)				$ 11.90
35	W10212137		Retainer, Door				$ 13.69
36	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
37	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
38	549193		Clamp, Power Cord				$ 14.06
39	W11308813		Tube, Water   (Replaces: W10277931)			Immediately	$ 124.33
40	W10865826		Valve, Water   (Replaces: W10394076)			Immediately	$ 69.09

    View Diagram in Separate Window       Print Part List
