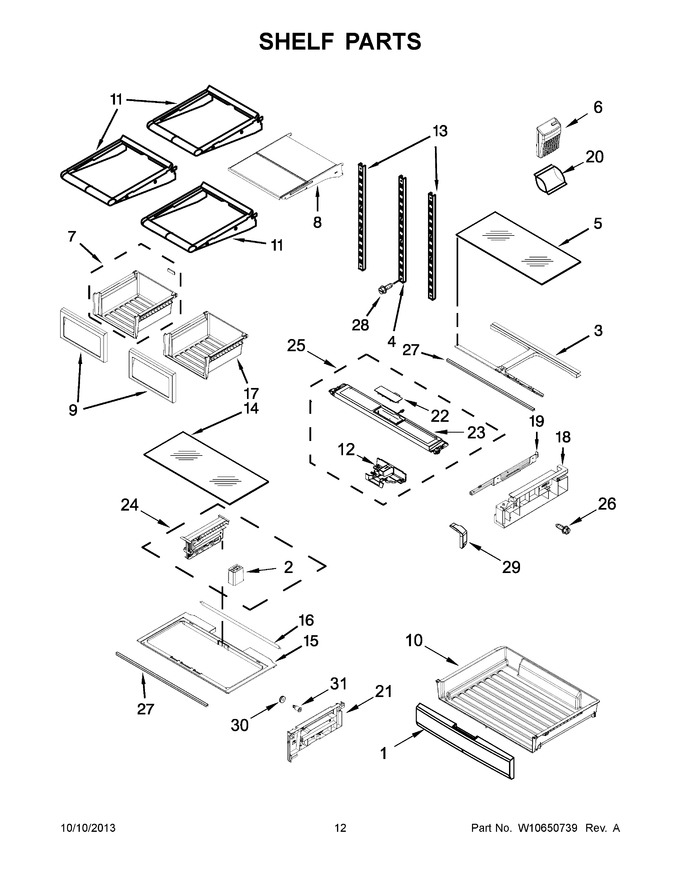

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10559660		Front, Pantry   (Replaces: W10525198)				$ 244.13
2	W10530315		Support, Crisper				$ 17.00
3	W10515051		Support, Pantry				$ 62.37
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 35.89
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 225.08
6	WPW10408747		Holder, Filter   (Replaces: W10408747)				$ 32.61
7	W10422682		Pan, Crisper				$ 62.37
8	WPW10402712		Shelf-tuck   (Replaces: W10402712)				$ 221.09
9	W10847546		Front Assembly, Crisper   (Replaces: W10524913)			Immediately	$ 107.98
10	W10514690		Pan, Pantry		Appelez-nous	-
11	WPW10402695		Shelf Assembly   (Replaces: W10402695)				$ 214.75
12	W10512596		Knob, Pantry Temp Control		Appelez-nous	-
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 50.62
14	WPW10248578		Glass, Crisper   (Replaces: W10248578)				$ 331.71
15	WPW10397044		Cover, Crisper   (Replaces: W10397044)				$ 120.14
16	WPW10248967		Support, Rear   (Replaces: W10248967)				$ 79.09
17	W10850129		Pan, Crisper   (Replaces: W10410352)			Immediately	$ 153.15
18	W10248798		Plate, Side Pantry (left Hand)				$ 97.50
18	W10248796		Plate, Side Pantry (right Hand)				$ 123.03
19	W10508326		Slide, Pantry (right Hand)				$ 311.48
19	W10508327		Slide, Pantry (left Hand)				$ 301.07
20	W10346771		Filter, Produce Preserver		Appelez-nous	-
21	W10530310		Plate, Crisper (right Hand)				$ 26.72
21	W11173721		Plate, Crisper (left Hand)   (Replaces: W10530311)				$ 35.25
22	W10554281		Housing, Pantry Temp Control		Appelez-nous	-
23	W10525200		Cover, Pantry Top		Appelez-nous	-
24	W10549606		Track Assembly, Crisper				$ 123.20
25	W10554737		Cover Assembly, Front Pantry		Appelez-nous	-
26	W10185612		Screw				$ 7.08
27	WPW10236512		Support, Front   (Replaces: W10236512)				$ 134.05
28	W10423560		Screw		Appelez-nous	-
29	W10426797		Front, Sideplate (pantry) (right Hand)				$ 32.39
29	W10426799		Front, Sideplate (pantry) (left Hand)		Appelez-nous	-
30	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 8.09
31	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
