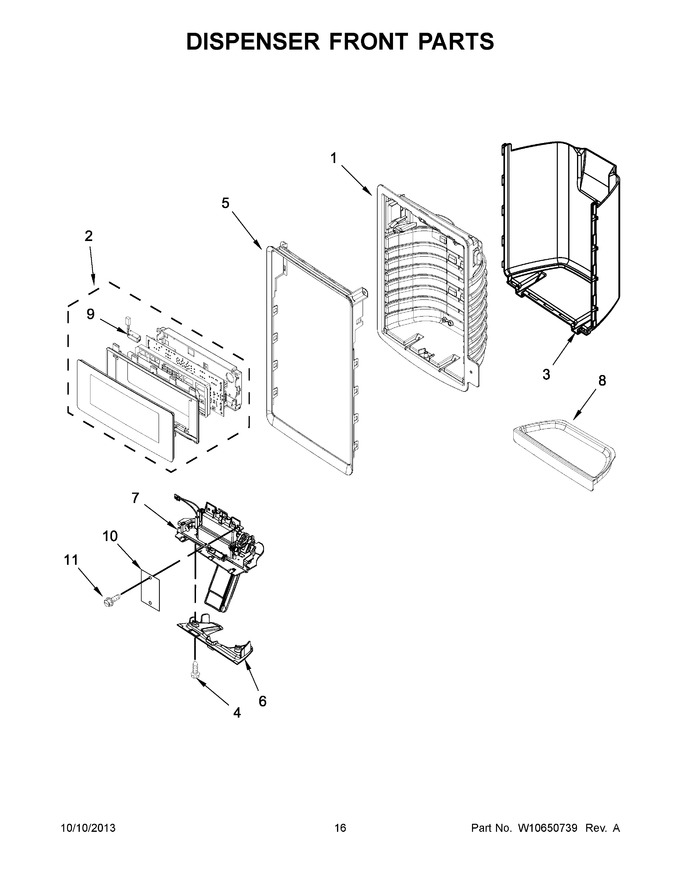

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10864268		Ui Assembly (black)   (Replaces: W10590854)				$ 409.59
2	W10865879		Ui Assembly (stainless)   (Replaces: W10590852)				$ 527.12
2	WPW10590851		Ui Assembly (white)   (Replaces: W10590851)				$ 370.95
3	W10427126		False Wall, Dispenser (white)		Appelez-nous	-
3	W10427119		False Wall, Dispenser (black)		Appelez-nous	-
3	W10703753		False Wall, Dispenser (grey)   (Replaces: W10427120)		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
5	W10587908		Ring, Trim (black)				$ 47.22
5	W10587907		Ring, Trim (white)				$ 29.12
5	W10587909		Ring, Trim (grey)				$ 91.07
6	W10560985		Cover, Separator				$ 86.86
7	N/P		Separator Assembly		Appelez-nous	-
8	WPW10322873		Tray, Drip (black)   (Replaces: W10322873)				$ 58.53
8	W10410105		Tray, Drip (grey)				$ 104.16
8	W10322872		Tray, Drip (white)		Appelez-nous	-
9	W11290115		Led Assembly   (Replaces: W10470750)				$ 84.45
10	W10572633		Shield, Separator		Appelez-nous	-
11	WPW10272364		Screw   (Replaces: W10272364)			Immediately	$ 11.36

    View Diagram in Separate Window       Print Part List
