SELECT A DIAGRAM

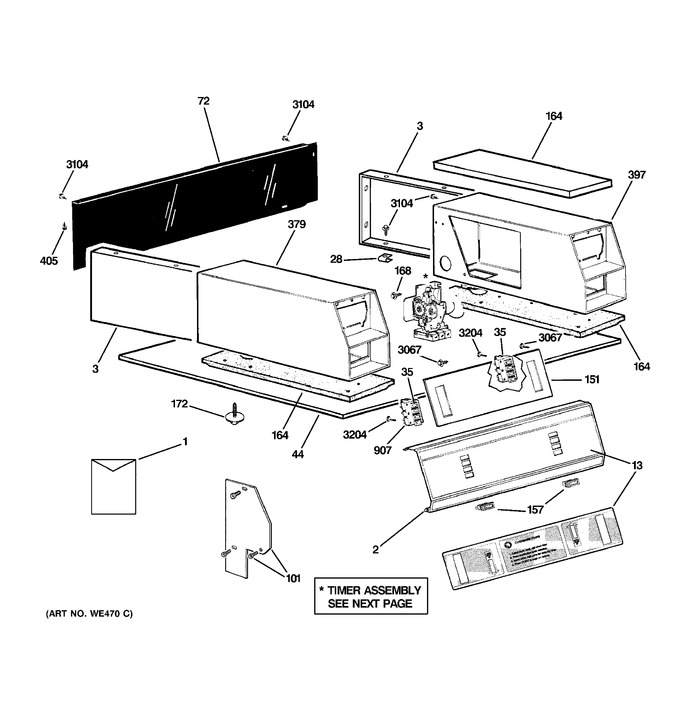

1 - Control Panel & Coin Box Assembly


2 - Front Panel & Door


3 - Upper Cabinet


4 - Lower Cabinet


5 - Drum


6 - Blower & Drive Assembly


7 - Timer Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16304		Wiring Diagram (front Si		Appelez-nous	-
1	31-16129		Instruction Sheet		Appelez-nous	-
1	31-16222		Installation Instruction		Appelez-nous	-
1	WE21M62		Drum Asm. 5.4		Appelez-nous	-
1	WE10M171		Inner Door Asm. W		Appelez-nous	-
1	WE14M237		Baffle		Appelez-nous	-
2	WE19M1444		Escutcheon Wh		Appelez-nous	-
3	WE20M245		Plate Side Wh		Appelez-nous	-
13	WE19M1560		Swtch Trim Decoratve Pad		Appelez-nous	-
28	WE2M171		Speed Nut U Type		Appelez-nous	-
35	WE4M162		Switch Pushbutton		Appelez-nous	-
44	WE20M273		Cover Top		Appelez-nous	-
72	WE20M244		Rear Control Panel		Appelez-nous	-
101	WE2M177		Screw Torx # Tr25 , 1/4		Appelez-nous	-
101	WE1M402		Timer Cover		Appelez-nous	-
151	WE1M372		Bracket Switch		Appelez-nous	-
157	WG04F07410		Lamp Asm. - Amber   (Replaces: WE1X950)				$ 10.81
164	WE1M397		Pad		Appelez-nous	-
172	WH2X735		Screw		Appelez-nous	-
379	WH65M205		Meter Case L.h Whte		Appelez-nous	-
397	WH65M203		Meter Case R.h White		Appelez-nous	-
907	WD9X206		Pushbutton		Appelez-nous	-
3204	WH2M270		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
